How Is CO₂ Used in Cell Culture?

CO₂ is used for maintaining pH balance in cell culture media through the CO₂-bicarbonate buffer system, which keeps cells viable and healthy. This controlled environment also regulates temperature and humidity while supporting proper cellular metabolism.

In this guide, we’ll explore the critical biochemical mechanisms behind CO₂ use in cell culture. We’ll also discuss optimal concentration requirements and practical uses across laboratory and industrial settings.

How Does CO₂ Maintain pH Balance in Cell Culture Media?

CO₂ dissolves in culture medium to form carbonic acid, which interacts with bicarbonate ions to create a powerful buffering system that maintains optimal pH levels. This CO₂-bicarbonate buffer system keeps the pH within the narrow range of 7.0-7.4 that cells need to survive and proliferate.

When CO₂ gas enters the culture medium, it undergoes a series of chemical reactions. Here’s a quick overview of the process:

1. The dissolved CO₂ first combines with water to form carbonic acid
2. The acid then dissociates into bicarbonate ions and hydrogen ions
3. This equilibrium reaction allows the system to resist pH changes by absorbing excess acids or bases that cells produce during metabolism

The buffer system works because it can respond to pH shifts in both directions. When cells produce acidic byproducts like lactate, the bicarbonate ions bind with excess hydrogen ions to form carbonic acid and eventually CO₂ gas. This process neutralizes the acid and prevents the culture from becoming too acidic.

Without proper CO₂ control, pH shifts occur rapidly and can be fatal to cell cultures. A drop in CO₂ concentration causes the pH to rise above 8.0, creating alkaline conditions that denature proteins and stop cell proliferation. Conversely, excessive CO₂ can acidify the medium below pH 6.8, triggering cell death.

The sensitivity of this buffer system to atmospheric CO₂ changes makes controlled incubators absolutely necessary for successful cell culture. Even brief exposure to normal atmospheric conditions can disrupt the delicate balance and compromise cell viability.

What Are the Optimal CO₂ Concentrations for Different Cell Types?

Most cell culture applications use CO₂ concentrations between 5-10%, with 5% being the most common standard for mammalian cells. This concentration provides the right balance of dissolved CO₂ to maintain pH stability without causing metabolic stress to the cells.

The 5% CO₂ concentration has become standard because it closely mimics physiological conditions found in blood and tissue. At this level, the CO₂ equilibrates with typical bicarbonate concentrations in culture media to stabilize pH at 7.4, which matches the pH of human blood and extracellular fluid.

Some specialized cell types or experimental conditions may require different CO₂ concentrations. Cells grown in media with varying bicarbonate content might need adjustments to the CO₂ level to maintain proper pH buffering.

Higher CO₂ concentrations up to 10% are sometimes used for specific research applications or when working with particular cell lines that have adapted to different conditions.

Deviations from optimal CO₂ levels can severely impact cell health and experimental results. Even small changes in CO₂ concentration can shift the pH enough to affect:

• Enzyme activity
• Protein folding
• Cellular metabolism

This sensitivity explains why precise CO₂ control is critical in both research laboratories and commercial cell culture facilities.

The consequences of improper CO₂ levels extend beyond just pH changes. Cells may experience osmotic stress, altered membrane transport, and disrupted metabolic pathways that can compromise growth rates and experimental reproducibility.

How Does CO₂ Affect Cellular Metabolism and Growth?

Elevated CO₂ levels directly influence cellular metabolism by affecting glycolysis and lactate production pathways. When CO₂ concentrations become too high, cells experience metabolic stress that can reduce growth rates and alter their normal biochemical processes.

High CO₂ levels suppress glucose consumption and lactate excretion in many cell types. This metabolic shift occurs because excess dissolved CO₂ acidifies the intracellular environment, disrupting enzyme function and cellular energy production. The result is slower cell growth and reduced productivity in culture systems.

The relationship between CO₂ and lactate metabolism is particularly important in large-scale cell culture operations. Cells typically go through phases where they first produce lactate from glucose, then later consume that lactate as a fuel source. Excessive CO₂ can delay this metabolic transition, leading to prolonged periods of acidic conditions that stress the cells.

Beyond its role in pH buffering, CO₂ also serves as a substrate for certain cellular reactions. Some enzymes use CO₂ in biosynthetic pathways that produce important cellular building blocks like amino acids and fatty acids. However, this beneficial role requires CO₂ to be present at optimal rather than excessive levels.

Industrial cell culture facilities must carefully monitor and control CO₂ to prevent these metabolic disruptions. In large bioreactors, CO₂ can accumulate to harmful levels due to high cell densities and inadequate gas exchange, making active CO₂ removal systems essential for maintaining productivity.

What Role Do CO₂ Incubators Play in Laboratory Settings?

CO₂ incubators create a controlled environment that regulates not just CO₂ concentration, but also temperature and humidity to provide optimal conditions for cell growth. These specialized chambers maintain the precise atmospheric conditions that cells need while protecting cultures from contamination.

Modern CO₂ incubators integrate multiple environmental controls into a single system. They typically maintain:

• Temperature at 37°C to match human body temperature
• Humidity at around 95% to prevent media evaporation
• CO₂ at the desired concentration through automated monitoring and injection systems

Temperature and humidity control work together with CO₂ regulation to create stable culture conditions. The high humidity prevents culture media from evaporating, which would concentrate salts and other components to potentially toxic levels. Meanwhile, the controlled temperature ensures that cellular enzymes and metabolic processes function at their optimal rates.

Contamination control features in CO₂ incubators include HEPA filtration systems and sterilization capabilities. Many units incorporate copper-enriched surfaces or periodic high-temperature sterilization cycles to eliminate microorganisms that could compromise cell cultures. These features are vital for maintaining cell culture integrity over extended periods.

Advanced CO₂ incubators can also provide specialized conditions like hypoxic environments for specific research applications. Some cells require low-oxygen conditions that better mimic their natural tissue environment, and modern incubators can precisely control oxygen levels while maintaining proper CO₂ and pH balance.

Understanding the Role of CO₂ in Cell Culture

CO₂ serves several critical functions in cell culture beyond simple pH control, acting as both a buffer system component and a metabolic regulator that directly impacts cell health and productivity.

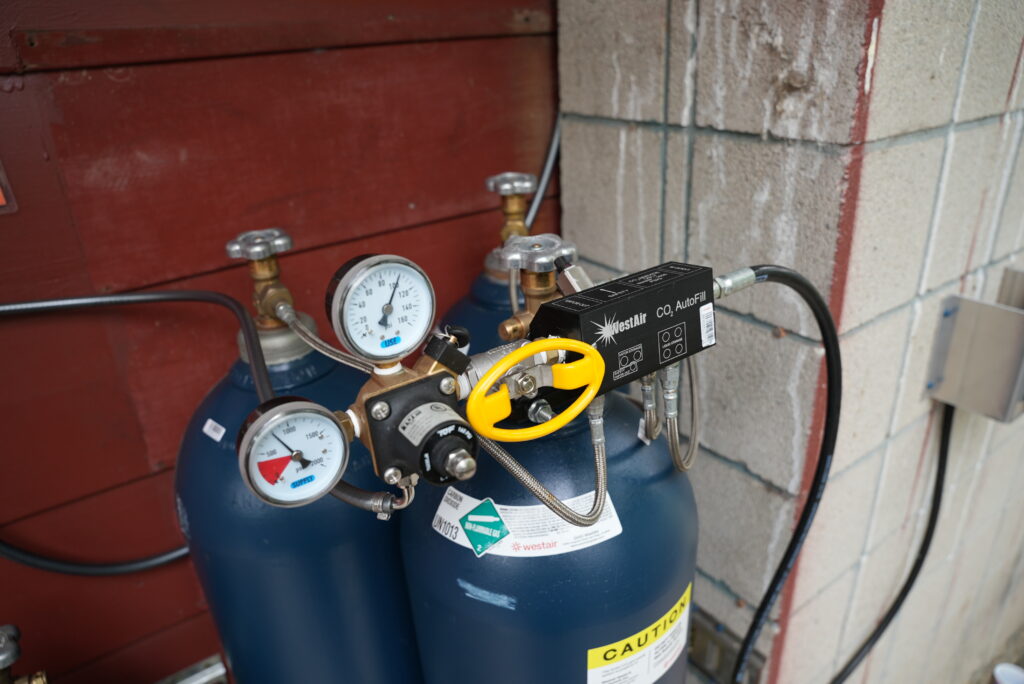

The precision required for optimal CO₂ management continues to drive innovations in incubator technology and large-scale bioreactor design, making reliable gas supply and control systems increasingly important for research and commercial applications.
