How Does a Helium Leak Detector Work?

A helium leak detector uses mass spectrometry to identify and measure helium gas escaping from system leaks. This precise technology can detect extremely small leaks by analyzing the presence of helium atoms, which makes it invaluable across industries.

This guide explores the cutting-edge mechanism behind helium leak detection to explain precisely how it works. You’ll also learn what makes helium the ideal choice for this task and how it’s used for different detection methods.

Tip: Check out WestAir’s gas safety solutions.

The Science Behind Helium Leak Detection

Helium leak detection uses a remarkably precise principle of mass spectrometry. Here’s how it works:

1. When helium passes through a leak, the detector’s specialized vacuum system draws in the gas molecules.
2. The molecules are ionized, creating electrically charged particles that can be manipulated and measured.
3. A magnetic field separates the helium ions from other gases in the sample, enabling incredibly accurate leak detection.

The detectors are highly sensitive, which means they can identify leaks as small as 10^-12 Pa·m^3·s^-1. That’s why helium leak detection is among the most precise methods available.

Why Helium is the Perfect Tracer Gas

Helium’s unique properties make it the ideal choice for leak detection. Its extremely small atomic size lets it penetrate through microscopic gaps that other gases cannot pass through.

Helium is also an inert gas, so it won’t react with any materials it encounters during testing. This characteristic ensures safe and reliable results across applications.

Finally, the minimal presence of helium in our atmosphere (only 0.0005%) means that background interference is negligible, which contributes to testing accuracy.

Detection Methods and Applications

Helium leak detection encompasses two methods:

1. Vacuum testing
2. Pressure testing

Each method serves specific testing needs across different industries.

Also known as the “outside-in” method, vacuum testing involves creating a vacuum in the test piece and spraying helium around potential leak areas. Any helium that enters through leaks is detected by the mass spectrometer.

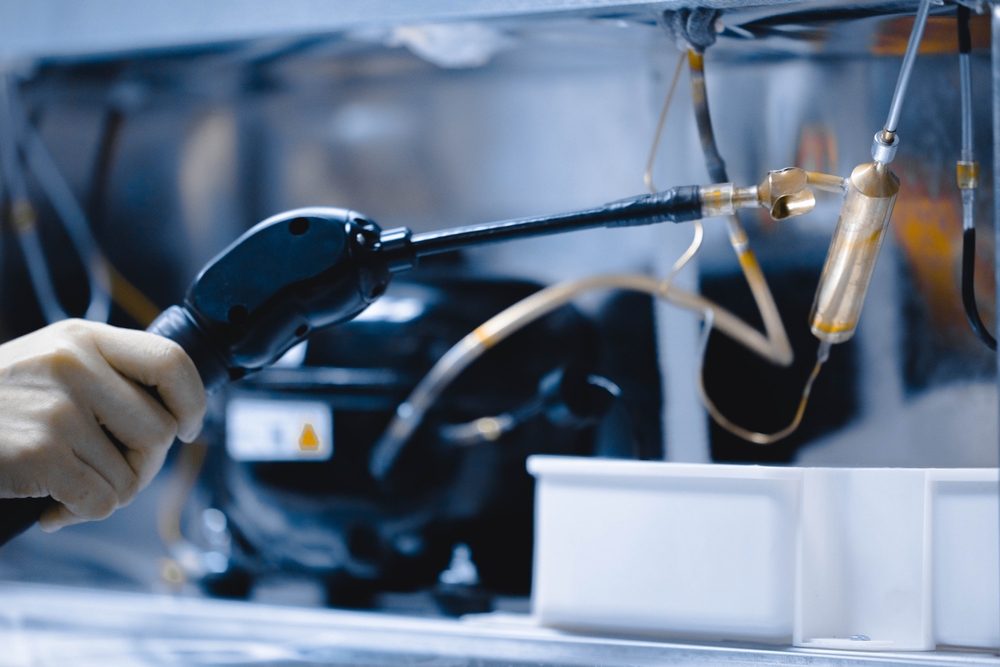

Pressure testing (the “inside-out” method) works by pressurizing the test piece with helium and using a sniffer probe to detect escaping gas. This method is particularly useful for larger systems.

These techniques are extensively used for various solutions, such as:

• Aerospace components
• Semiconductor manufacturing
• Medical devices
• Automotive systems

The technology ensures the integrity of critical systems where even minimal leaks could cause significant problems.

Components and Working Process

A helium leak detector consists of several components, most notably:

• A vacuum chamber
• Helium source
• Ion chamber
• Analyzer cell

The detection process begins when helium enters the system through the tracer gas inlet. As it passes through potential leak points, the escaped helium is collected and directed to the ion chamber.

Inside the ion chamber, ionizing radiation interacts with helium atoms and creates ions. These ions travel through the analyzer cell, which separates helium ions from other gases.

The detector then measures the quantity of helium ions present, providing precise data about the location and size of any leaks. This information helps technicians identify exactly where repairs are needed.

Advanced Features and Benefits

Modern helium leak detectors leverage sophisticated technology for enhanced performance. For example, digital controls and automated calibration systems ensure consistent results.

Real-time monitoring capabilities are also particularly valuable, as they allow technicians to track leak rates continuously. This feature is especially useful in production environments where quick identification of problems is essential.

Finally, the high sensitivity of these systems means they can detect even the smallest leaks that might be missed by other testing methods. This is crucial in industries where system integrity is paramount, such as medical device manufacturing or aerospace applications.

Leverage the Capabilities of Helium Leak Detection

Helium leak detection is a critical quality control practice across numerous industries. Its combination of precision, reliability, and versatility makes it an indispensable technology for ensuring the safety and efficiency of various systems and products.
