MIG Welding Gas Settings: Best Flow Rates & Mixtures

The optimal MIG welding gas flow rate for mild steel indoors with no draft is 10-15 CFH (cubic feet per hour), while other metals and conditions require different settings. Proper gas settings are crucial for creating strong, clean welds without defects like porosity or contamination.

Understanding the correct gas flow rates and mixtures for your specific welding application can mean the difference between professional results and costly rework. This comprehensive guide explores everything you need to know about optimizing your MIG welding gas settings for solid results every time.

Understanding MIG Welding Gas Flow Rates

Gas flow rate in MIG welding is the volume of shielding gas delivered to the weld area, typically measured in cubic feet per hour (CFH). The main purpose of shielding gas is to protect the molten weld pool from atmospheric contamination.

Without adequate shielding gas coverage, oxygen and nitrogen from the air can enter the weld pool. This contamination leads to porosity, brittleness, and other weld defects that compromise appearance and structural integrity.

However, more gas isn’t always better – excessive flow rates create turbulence that can actually pull atmospheric contaminants into the weld area.

Finding the optimal flow rate depends on several factors, including:

• Metal type
• Welding position
• Environmental conditions
• Nozzle size

Let’s examine the recommended flow rates for different welding scenarios.

Optimal Gas Flow Rates by Metal Type

Mild Steel MIG Welding Gas Flow Rates

For mild steel MIG welding in indoor environments with no drafts, a flow rate of 10-15 CFH provides excellent results. This range offers sufficient coverage without wasting gas.

If you notice porosity in your welds, increase the flow rate to 20-30 CFH. Porosity appears as small holes in the weld bead and indicates insufficient gas coverage.

For outdoor mild steel welding or in environments with air movement, higher flow rates of 30-35 CFH are recommended. The increased flow compensates for gas dispersion caused by wind or drafts.

As a general starting point, 15-25 CFH works well for most mild steel applications. Adjust from there based on your results and specific conditions.

Aluminum MIG Welding Gas Flow Rates

Aluminum welding requires higher gas flow rates than mild steel. The minimum recommended flow rate for aluminum is 20 CFH.

For optimal results with aluminum, a flow rate of 25-35 CFH typically provides the best coverage. Aluminum’s high thermal conductivity and reactivity with oxygen make proper shielding especially important.

Outdoor aluminum welding may require flow rates approaching the maximum limit for your nozzle size. Always monitor for signs of inadequate coverage or excessive turbulence.

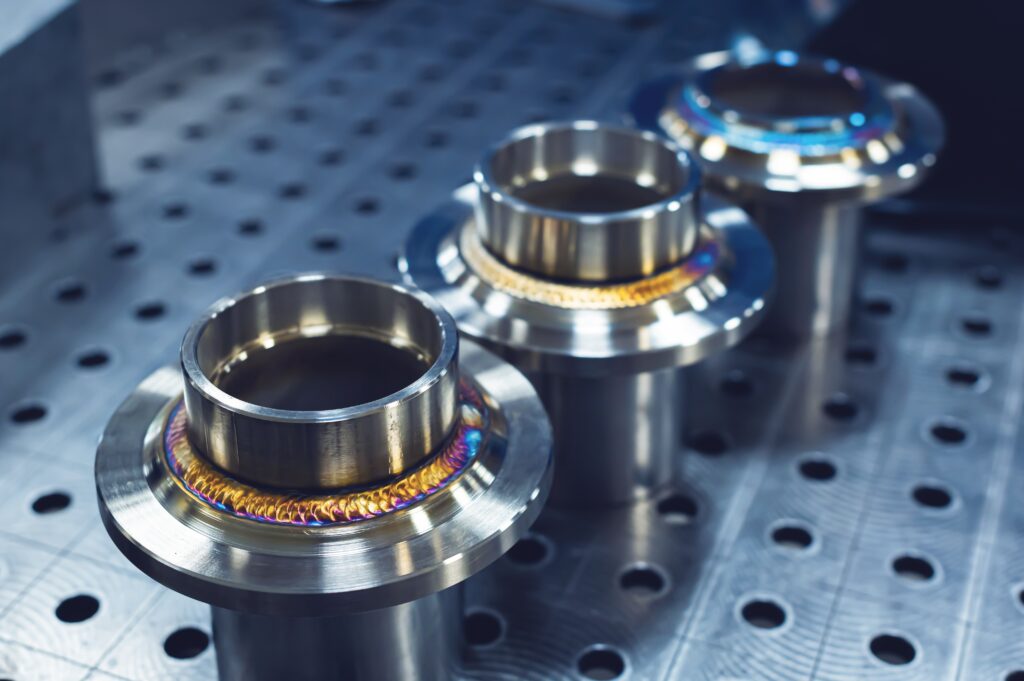

Stainless Steel MIG Welding Gas Flow Rates

Stainless steel welding requires a minimum flow rate of 20 CFH. The recommended range for most stainless steel applications is 20-30 CFH.

Like aluminum, stainless steel is sensitive to atmospheric contamination. Inadequate gas coverage can cause chromium oxidation and reduced corrosion resistance.

For complex stainless steel joints or outdoor welding, flow rates of up to 35 CFH may be necessary. Always start at the lower end of the recommended range and increase as needed.

Maximum Flow Rates by Nozzle Size

Your nozzle size directly impacts the maximum effective flow rate you can use. Exceeding these limits typically causes turbulence rather than improved coverage.

The following table outlines the right flow rate for each nozzle size:

Selecting the Right Gas Mixture

Gas Mixtures for Mild Steel

Pure CO2 is the most economical shielding gas for mild steel. It provides deep penetration but creates more spatter and a less smooth weld appearance.

A mixture of 75% Argon and 25% CO2 (commonly called C25) offers an excellent balance. This blend provides:

• Good weld appearance
• Reduced spatter
• Adequate penetration

For thinner materials, mixtures with higher argon content (80-90%) create less heat input and reduce the risk of burn-through. These mixtures produce cleaner welds with minimal spatter.

Gas Mixtures for Stainless Steel

Pure argon or high-argon mixtures are standard for stainless steel welding. These provide excellent corrosion resistance and weld appearance.

A mixture of 98% Argon and 2% CO2 is popular for stainless steel. This blend offers good arc stability while minimizing chromium oxidation.

For thicker stainless materials, argon-helium mixtures provide increased heat input and deeper penetration. A common ratio is 90% Argon, 7.5% Helium, and 2.5% CO2.

Gas Mixtures for Aluminum

Pure argon is the standard shielding gas for aluminum MIG welding. It provides stable arc characteristics and excellent weld quality.

For thicker aluminum sections, argon-helium mixtures increase heat input and improve fusion. Common mixtures contain 25-75% helium, with the remainder being argon.

The helium content should increase proportionally with material thickness. Thicker aluminum benefits from higher helium percentages due to improved heat transfer.

Environmental Factors Affecting Gas Flow Requirements

Indoor welding in still air provides ideal welding conditions. Standard flow rates (10-15 CFH for mild steel) work well in these environments.

Welding near fans, open doors, or air conditioning vents creates drafts that disrupt gas coverage. Increase flow rates by 10-15 CFH when working in these conditions.

Outdoor welding is the greatest challenge for gas coverage. Wind can quickly disperse shielding gas before it adequately protects the weld pool.

For outdoor work, use flow rates of 30-35 CFH. You should also position yourself to block wind when possible, or use portable windscreens to protect the weld area. Some welders even create simple barriers using cardboard or other materials.

Troubleshooting Gas Flow Issues

Identifying Insufficient Gas Coverage

Porosity (small holes in the weld bead) is the most common sign of inadequate gas coverage. These defects weaken the weld and create points for corrosion to begin.

Excessive oxidation appears as discoloration in and around the weld. This indicates atmospheric contamination during welding.

Inconsistent arc stability and excessive spatter often stem from poor gas coverage. The arc should remain steady throughout the welding process.

If you notice these issues, incrementally increase your flow rate while checking for improvements. Continue adjusting until defects are eliminated.

Identifying Excessive Gas Flow

Turbulence created by excessive flow rates can pull atmospheric contaminants into the weld area. This paradoxically causes the same defects as insufficient flow.

Excessively high gas consumption without quality improvement indicates flow rates above optimal levels. This wastes gas and may reduce weld quality.

A pulsing or wavering arc can sometimes indicate turbulence from excessive flow. The gas actually disrupts the arc rather than protecting it.

If increasing the flow rate doesn’t improve or worsens weld quality, reduce the flow and look for the sweet spot where quality is maximized.

Conclusion

Proper MIG welding gas settings are essential for creating high-quality, defect-free welds. The optimal flow rate depends on metal type, nozzle size, and environmental conditions.

Remember that more isn’t always better when it comes to gas flow. Excessive flow creates turbulence that can compromise weld quality just as much as insufficient coverage.

Start with the recommended base flow rates for your material – 10-15 CFH for mild steel indoors, 20 CFH minimum for aluminum and stainless steel – and adjust based on your specific conditions and results.

By understanding and implementing these gas flow principles, you’ll achieve consistent, high-quality MIG welds while optimizing your gas usage and reducing operating costs.
