Can You MIG Weld with 100% Argon?

Lawrence Haynes | 3 minutes | May 12, 2025

It’s technically possible to MIG weld with 100% argon, but it’s not recommended because it produces weak, brittle welds with poor penetration. This shielding gas choice is better suited for specific applications like aluminum and nonferrous metals.

This guide explains why this is the case and when you can confidently use pure argon. We’ll also discuss the best gas mixtures for steel MIG welding so that you can choose the right option.

Understanding the Limitations of Pure Argon in MIG Welding

Using 100% argon for MIG welding steel creates several significant challenges. Most notably, the resulting welds typically show reduced penetration and stability compared to standard gas mixtures.

This is because the pure argon environment leads to a less stable arc and decreased power output. The result is a narrower, taller weld bead that lacks the desired penetration depth.

The molten pool also becomes more viscous when using pure argon. This makes it harder to achieve proper fusion and can lead to notable weld defects.

Impact on Weld Quality and Strength

Using 100% argon for steel MIG welding can seriously compromise weld integrity. The welds often lack the necessary ductility and strength for most applications.

Besides, welds produced with pure argon are more prone to cracking under stress. The reduced penetration and fusion characteristics create joints that may fail during service.

Finally, the tendency toward undercutting becomes more pronounced with pure argon. This defect further weakens the weld and can lead to premature failure.

For the above reasons, professional welding standards typically don’t allow pure argon for steel MIG welding. The potential risks and quality issues make it a poor choice for critical applications.

When Pure Argon Works Best

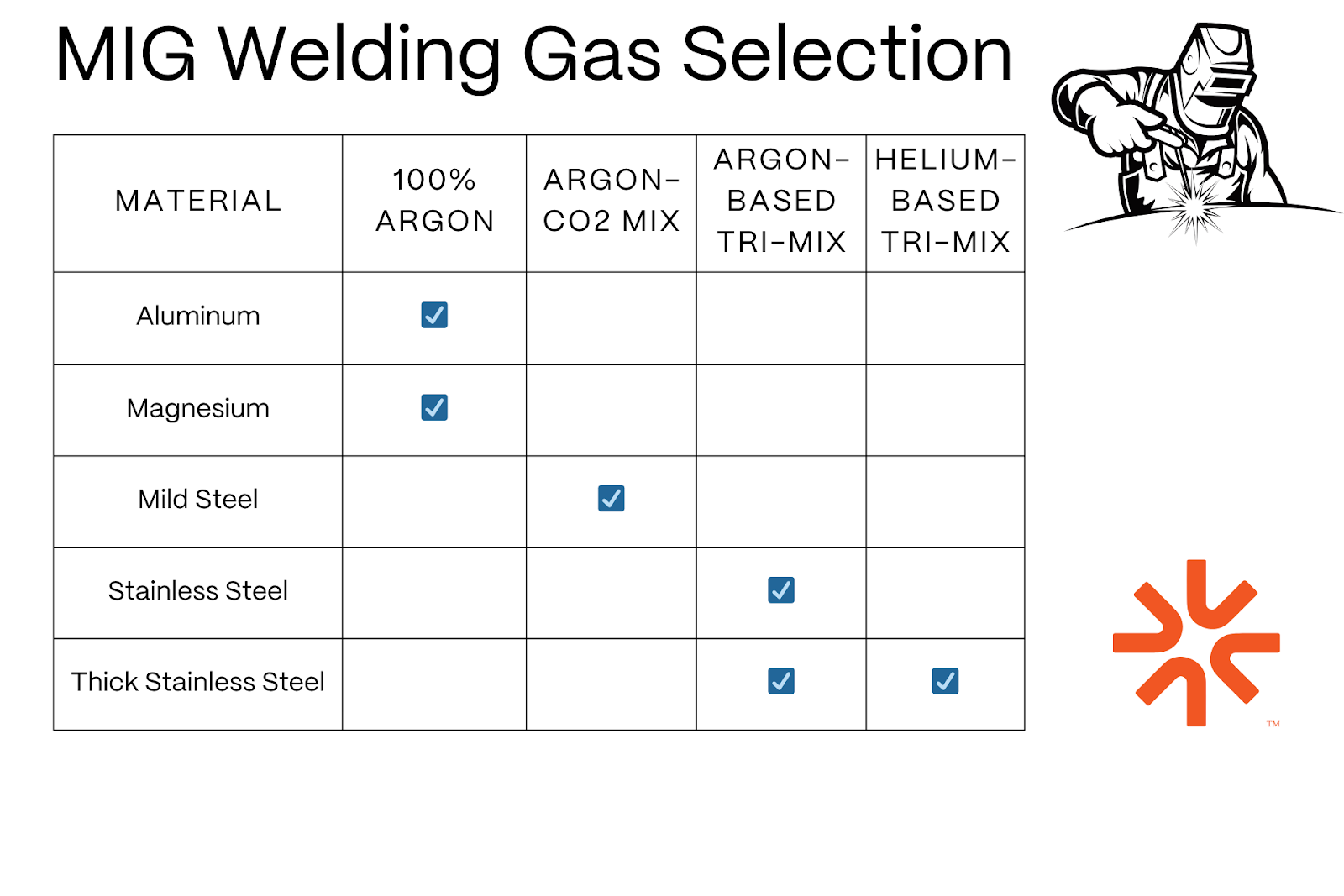

Pure argon does have its place in MIG welding, specifically with nonferrous metals. It performs exceptionally well with metals like:

  • Aluminum
  • Titanium
  • Magnesium

Unlike steel, these materials benefit from the inert properties of pure argon. The gas provides excellent shield protection without introducing any reactive elements that could compromise weld quality.

For aluminum welding, 100% argon creates a stable arc and clean welds. The gas’s properties help prevent oxidation and produce aesthetically pleasing results.

Better Alternatives for Steel MIG Welding

Gas mixtures consistently outperform pure argon when it comes to steel MIG welding. The most popular choice is a 75/25 blend of argon and CO2 because it offers superior arc stability and penetration. This mixture creates welds that are both stronger and more ductile than those produced with pure argon.

The addition of CO2 to argon provides several benefits, most notably:

  • Improved arc characteristics
  • Increased penetration depth
  • A more manageable weld pool

Mixed gases also result in better bead appearance and reduced likelihood of defects. The welds show improved fusion and less tendency toward undercutting.

Experienced welders prefer these mixtures because they provide more consistent results. The enhanced control and better overall performance make mixed gases the standard choice for professional applications.

Choose the Right Gas for MIG Welding

Pure argon might only be considered for steel MIG welding in emergency situations when no other gas options are available. Still, such welds should be temporary and replaced with proper gas mixture welds as soon as possible.

The choice of shielding gas significantly impacts weld quality and project success. While pure argon has its applications in welding nonferrous metals, steel MIG welding requires gas mixtures for optimal results.
