Liquid Nitrogen Pumping Systems Explained

A liquid nitrogen pumping system raises the pressure of liquid nitrogen so it can be delivered where it’s needed, either as pressurized liquid or vaporized into high-pressure gas. At its center is a cryogenic liquid nitrogen pump that pulls cold liquid from a storage tank and pushes it out at a pressure the tank can’t supply on its own.

From there it goes one of two ways: out as pressurized liquid to cryogenic freezers, cooling loops, or test equipment, or through a vaporizer to become high-pressure gas for cylinders, tube trailers, and process lines.

A liquid storage tank holds a huge amount of nitrogen in a small footprint, but at relatively low pressure. Many end uses need nitrogen at a higher pressure than the tank can supply on its own. Others need tighter control over pressure and flow than a static tank can give. A pump takes care of both pressure and control.

WestAir offers nitrogen services across California and Arizona.

How Does a Liquid Nitrogen Pump Work?

A liquid nitrogen pump draws cold liquid from a storage tank and raises its pressure while it stays liquid. From there, the high-pressure liquid either goes straight to the application or passes through a vaporizer that converts it to gas. Compressing a liquid takes far less energy than compressing the same nitrogen as a gas, which is why any system that needs high-pressure gas pumps the liquid first and vaporizes it second.

The Basic Pumping Mechanism

The pump pressurizes the nitrogen mechanically while it’s still liquid. A piston or plunger pulls liquid in on one stroke and forces it out at higher pressure on the next, the same basic action as any reciprocating pump, just built for cryogenic service.

Because the nitrogen is still a liquid at this stage, the pump is moving a dense, nearly incompressible fluid.

The pressurized liquid then leaves the pump and heads to wherever it’s used, either straight to the process or on to a vaporizer. Everything up to that point is still liquid, just liquid at high pressure.

Why Pumping a Cryogenic Liquid Is So Hard

The hardest part is keeping the nitrogen liquid all the way into the pump. At −196°C (−321°F), liquid nitrogen already sits right at its boiling point, so even a small heat leak or pressure drop can flash it into vapor before the pump can move it.

When liquid turns to vapor at the pump inlet, the pump loses its prime and stops moving product. This vapor formation, often called flashing or cavitation, is a constant threat with a fluid already sitting at its boiling point rather than the occasional nuisance it is in ordinary pumps.

Systems fight it two ways: by keeping the liquid slightly below its boiling point (subcooled), and by feeding the pump from a tank mounted high enough that the liquid’s own weight keeps it pressurized at the inlet. Starve the pump of that head pressure and vapor forms at the inlet.

Extreme cold brings a second challenge, since metal contracts as it gets colder. Components get sized so they contract into a proper fit at operating temperature, not at room temperature. A pump built to seal perfectly when warm can leak once it’s cold, so the cold parts are engineered around the shrink.

Seals and lubricants are the third problem. Ordinary ones stiffen or fail at −196°C (−321°F), so the cold end of the pump, the section in direct contact with liquid nitrogen, uses specialized materials and often runs without conventional lubrication.

Reciprocating, Centrifugal, and High-Pressure Pumps

Two pump designs handle liquid nitrogen, and the right one depends on how much pressure you need:

• Reciprocating (positive-displacement) pumps: use a piston or plunger to drive liquid to high pressure. They’re the workhorse for filling cylinders and tube trailers, where delivery pressures run into the thousands of psi.
• Centrifugal pumps: use a spinning impeller to move large volumes at lower pressure. They fit high-flow transfer jobs, like moving liquid between tanks or feeding a process line at modest pressure.

High-pressure fill stations almost always use reciprocating pumps, because positive displacement is what reaches the pressures that gas cylinders and tube trailers require. Centrifugal pumps win when volume matters more than pressure.

From Liquid to High-Pressure Gas

For systems that deliver gas, the path is simple: liquid in, high-pressure gas out. The steps are straightforward:

1. Supply: liquid nitrogen flows from the storage tank to the pump inlet, kept cold and subcooled along the way.
2. Pressurize: the pump raises the liquid to the target pressure.
3. Vaporize: the high-pressure liquid passes through a vaporizer, where ambient air or a heat source warms it and it expands into gas.
4. Deliver: the gas leaves at pressure for its destination, whether that’s a single cylinder, a full cylinder bank, a tube trailer, or a process line.

Systems built to deliver liquid instead of gas simply skip the vaporizer step, sending high-pressure liquid straight to a cryogenic freezer, cooling loop, or test rig.

This is how one bulk liquid source can fill hundreds of high-pressure gas cylinders. A small volume of liquid becomes a large volume of gas—liquid nitrogen expands to roughly 694 times its liquid volume when warmed to room temperature.

The process works in this order for efficiency. The liquid nitrogen is pressurized while it’s still a liquid, because pumping a liquid to high pressure requires much less energy than compressing nitrogen gas. The pressurized liquid is then vaporized into high-pressure gas.

What Components Make Up a Complete System?

A complete system pairs the cryogenic pump with a few supporting pieces:

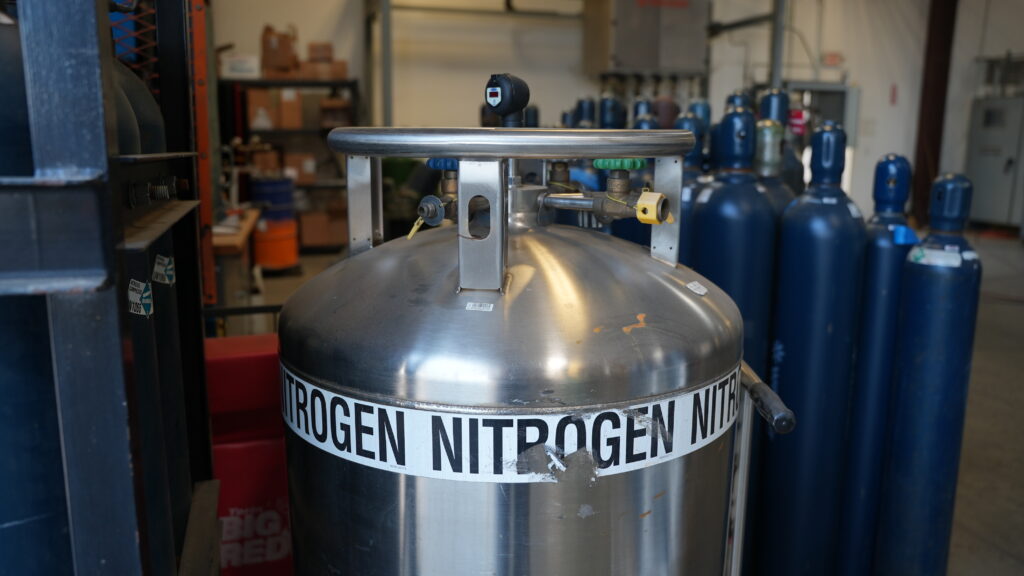

• Liquid storage source: a bulk tank or Dewar holds the liquid and feeds the pump, with internal plumbing that keeps it pressurized at the inlet.
• Vacuum-insulated piping: vacuum-jacketed transfer lines carry the cold liquid between components with minimal heat gain, so it doesn’t boil off on the way.
• Controls and relief: instrumentation manages pressure and flow through the fill or delivery cycle, while relief valves and burst discs vent safely if pressure climbs past the design limit.
• Vaporizer: a heat exchanger that converts pressurized liquid into gas, used only when the application needs gas rather than liquid.

Which Industries Rely on Liquid Nitrogen Pumping Systems?

Liquid nitrogen pumping systems show up wherever a business needs nitrogen above storage-tank pressure, as liquid or as gas. They most commonly turn up in a few industries:

• Oil and gas: mobile nitrogen pumping units for well services, pipeline purging, and pressure testing.
• Food and beverage: feeding freezing tunnels and packaging lines where nitrogen protects and preserves product.
• Electronics and semiconductor: high-purity nitrogen at pressure for inerting and blanketing sensitive production lines.
• Pharmaceutical and biotech: nitrogen for blanketing, inerting, and cryogenic sample storage.

Other operations rely on them too, from cylinder-filling plants to metal fabrication. The common thread is pressure: each needs nitrogen delivered above what a plain liquid tank provides.

What Pump-Specific Safety Risks Should You Plan For?

The biggest pump-specific risk is trapped liquid. When liquid nitrogen gets sealed inside a closed section of pipe and starts to warm, it expands with enormous force as it turns to gas, and with nowhere to go it can rupture lines or equipment.

That expansion is the same property that makes the system useful, just working against you. The liquid that becomes hundreds of times its volume as gas will build pressure inside a trapped line.

Well-designed systems prevent this with relief valves between each pair of isolation valves, so no section can trap liquid without a way to release it. Before closing off any cryogenic line segment, confirm it has relief protection.

Rapid cooldown is another concern. Components that aren’t rated for cryogenic temperatures can crack or fail when cold liquid hits them, so every wetted part has to be cryogenic-rated.

Also, keep the area well ventilated to safeguard against oxygen displacement and wear proper PPE around cold surfaces to prevent cryogenic burns.

Sizing It for Your Operation

The right liquid nitrogen pumping system starts with your end use, not the pump. Once you know whether you need liquid or gas and at what pressure and flow, the pump type and supporting hardware almost choose themselves.
