What Gas Do You Use to Weld Stainless Steel?

Pure argon is the most common gas used to weld stainless steel, especially for TIG welding of thin materials. For thicker stainless steel or MIG welding applications, specialized mixtures like argon-helium, argon-CO₂, or tri-mix gases provide better penetration and arc stability.

In this guide, you’ll learn how different shielding gases affect stainless steel welding quality and which options work best for different applications.

Understanding Shielding Gas Fundamentals

Shielding gases protect the weld pool from atmospheric contamination while facilitating stable arc conditions. These gases prevent oxygen and nitrogen from reacting with the molten metal, which would otherwise result in issues like:

• Porosity
• Embrittlement
• Reduced corrosion resistance

Stainless steel is particularly susceptible to these issues because of its chromium content. When exposed to high temperatures without proper shielding, chromium can form carbides or oxides that compromise the material’s inherent corrosion resistance.

The right shielding gas creates an inert envelope around the weld zone. This protective barrier allows the molten metal to solidify with minimal contamination.

Different gases transfer heat at varying rates, affecting penetration depth and weld bead profile. This characteristic becomes crucial when working with stainless steel’s relatively poor heat conductivity.

Pure Argon: The Go-To Choice

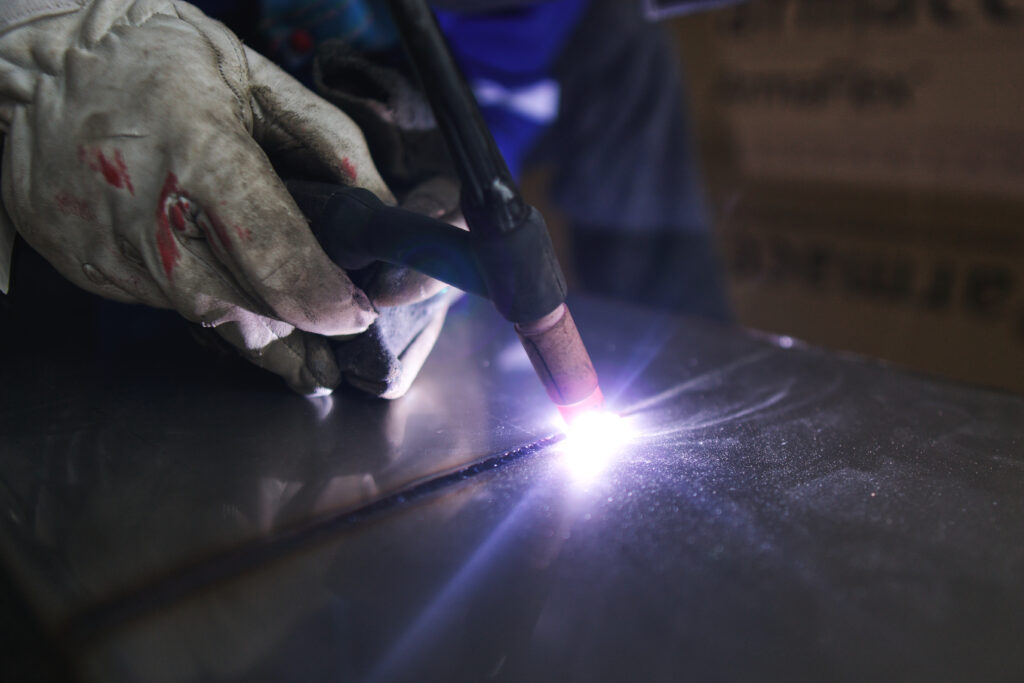

Pure argon (100% Ar) is the baseline gas used in stainless steel welding gas systems. This inert gas provides excellent arc stability and weld puddle control, which makes it ideal for TIG welding.

For materials under 3mm thickness, pure argon offers the perfect balance of protection without excessive heat input. The relatively cool arc prevents burn-through on thin sections while maintaining adequate fusion.

Argon creates a clean, narrow arc cone that enables precise control. This precision is particularly valuable when welding in tight corners or on complex assemblies.

With flow rates typically between 15-20 cubic feet per hour (CFH), pure argon provides cost-effective protection suitable for most hobbyist and light industrial applications. Its widespread availability makes it the default choice for facilities without specialized gas systems.

The resulting welds have minimal spatter and good cosmetic appearance. This aesthetically pleasing result is the reason fabricators working on visible architectural elements often prefer pure argon.

Argon-Helium Mixtures for Enhanced Penetration

When welding thicker stainless steel sections (above 6mm), pure argon often lacks sufficient heat input for complete penetration. This is where helium additions become valuable.

Common argon-helium mixtures range from 75% Ar/25% He to 25% Ar/75% He. As helium content increases, so does the heat transfer to the workpiece.

Helium’s higher thermal conductivity creates a hotter, more fluid weld pool. This allows faster travel speeds and deeper penetration, reducing the number of passes required for thick sections.

For TIG welding, a 75% Ar/25% He mixture often provides the right balance. This ratio maintains good arc stability while improving heat transfer by approximately 20% compared to pure argon.

MIG welding of heavier stainless steel components typically uses higher helium percentages. A 50/50 mixture delivers the penetration needed for single-pass welds on thicker material.

The trade-off is cost and availability. Helium is much more expensive than argon and requires higher flow rates (typically 25-30 CFH) due to its lower density.

Argon-CO₂ Blends for MIG Applications

While pure argon works for MIG welding stainless steel, small additions of carbon dioxide (CO₂) drastically improve arc characteristics. These mixtures typically contain 98% Ar/2% CO₂ or 95% Ar/5% CO₂.

The CO₂ component stabilizes the arc and prevents the stubborn “finger” penetration pattern sometimes seen with pure argon. This creates a wider, more uniform penetration profile.

For thin-gauge stainless steel, the 98/2 mixture ensures minimal oxidation while improving arc stability. This blend is particularly effective for short-circuit transfer MIG processes.

As material thickness increases to medium range (3-6mm), the 95/5 mixture offers better wetting action and penetration. The slightly higher oxidation potential remains acceptable for most industrial applications.

CO₂ content should be limited to prevent excessive carbon pick-up in the weld metal. Too much carbon can form chromium carbides along grain boundaries, reducing corrosion resistance through a process called sensitization.

These argon-CO₂ blends cost less than helium-containing mixtures. Their effectiveness for routine fabrication work makes them the go-to choice for many production facilities.

Tri-Mix Gases for Specialized Applications

For the most demanding stainless steel welding scenarios, tri-mix gases combine the benefits of argon, helium, and CO₂. The following two formulations are particularly common:

1. 90% He/7.5% Ar/2.5% CO₂
2. 55% He/42.5% Ar/2.5% CO₂

These specialized mixtures excel in spray-transfer MIG welding of thick sections. The helium component provides deep penetration, while the small CO₂ addition stabilizes the arc.

Tri-mix gases are especially useful for vertical and overhead welding positions. The balanced heat input prevents the weld pool from sagging while maintaining sufficient fluidity for good fusion.

For critical applications like high-pressure piping or structural components, these mixtures ensure complete joint penetration without excessive heat input. This balance minimizes distortion in complex assemblies.

The superior weld quality comes at a premium price point. Tri-mix gases are much more expensive than standard argon and require specialized supply arrangements.

Many industrial fabricators reserve these premium mixtures for specific applications where their performance benefits outweigh the increased cost.

Gas Selection by Stainless Steel Grade

Different stainless steel families respond differently to welding gases. Austenitic grades (300-series) are the most forgiving and work well with all the gas options discussed.

For welding 304 and 316 stainless steel, pure argon offers excellent results in TIG welding. MIG processes on these common grades often use the 98% Ar/2% CO₂ mixture for optimal results.

Ferritic stainless steels (400-series) benefit from lower heat input to prevent grain growth. Pure argon or lean argon-CO₂ mixtures prevent excessive heat-affected zone expansion in these grades.

Duplex stainless steels contain both austenitic and ferritic structures. These grades often benefit from nitrogen additions (1-2%) to the backing gas to maintain proper phase balance during welding.

For precipitation-hardening stainless steels like 17-4PH, controlling heat input is critical. Argon-helium mixtures allow faster travel speeds, minimizing the time spent at transformation temperatures.

Selecting the right gas becomes increasingly important as the alloy becomes more specialized. Super duplex, high-nickel, and other specialty stainless steels may require consultation with metallurgists for optimal gas selection.

Choose the Right Gas for Your Welding Projects

As you can see, the optimal shielding gas for stainless steel welding depends on material thickness, welding process, and application requirements. Pure argon satisfies most TIG welding needs, while various mixtures enhance MIG welding performance.

By matching gas selection to your specific stainless steel project, you can achieve the perfect balance of penetration, arc stability, and weld quality. When in doubt, consult your gas supplier on the best option for your particular application.
