What Is a Carrier Gas?

A carrier gas is an inert gas that moves sample molecules through an analytical system, serving as the mobile phase in gas chromatography. Without it, your gas chromatography (GC) won’t function – samples would sit in the injection port or stick to the column instead of reaching the detector for analysis.

Below, you will learn:

• What carrier gases do in gas chromatography systems
• How to select the right carrier gas for your GC application
• How flow rates affect your separation quality and analysis time
• What purity levels different detectors and applications require
• Whether you can switch between carrier gases and what’s involved
• Which other industries beyond GC rely on carrier gases

What Does a Carrier Gas Do in Gas Chromatography?

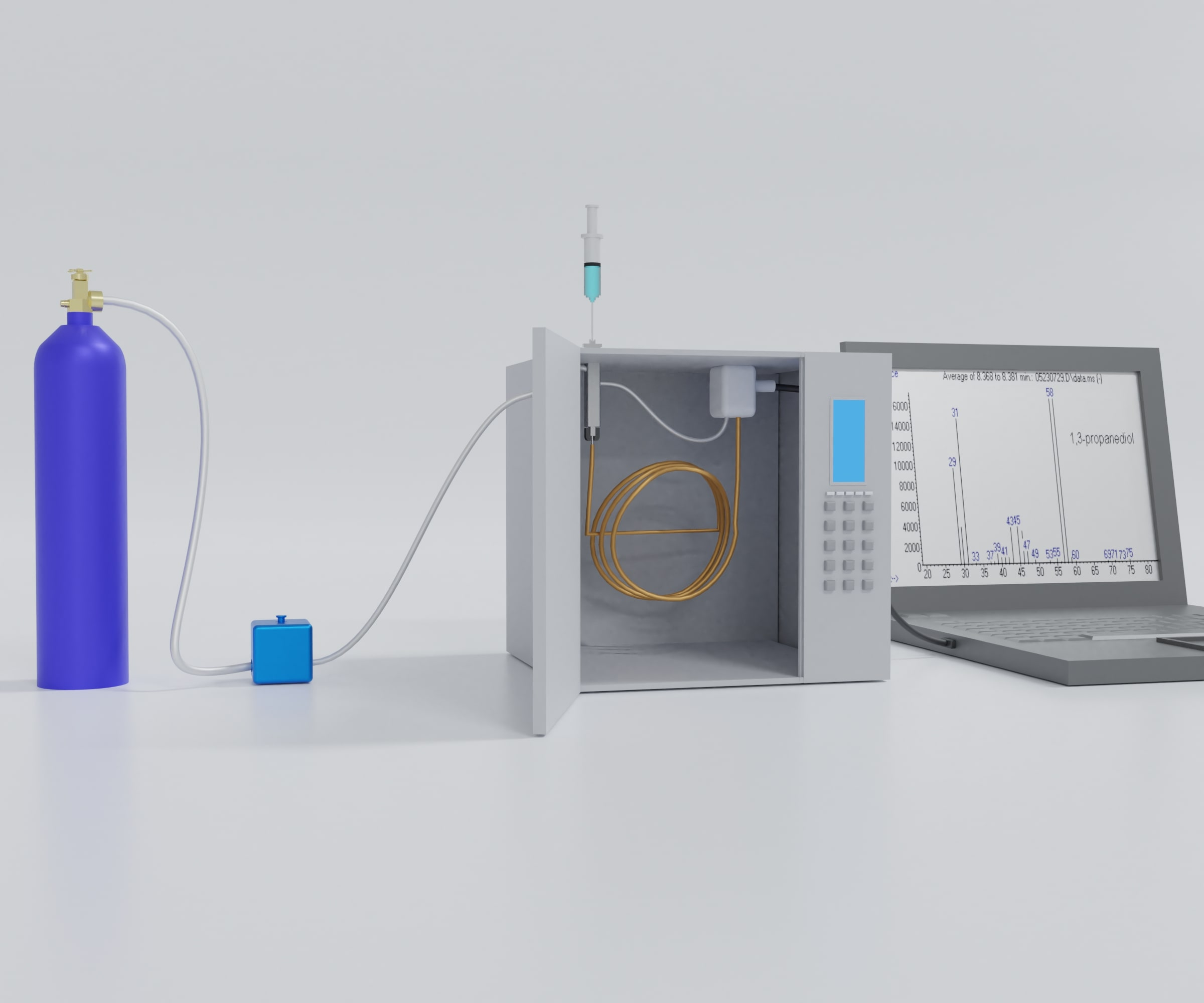

A carrier gas moves your sample through the GC column while keeping compounds separated for accurate analysis. Think of it as the transport system that pushes vaporized samples from the injection port through the column to the detector.

The carrier gas serves as the mobile phase in gas chromatography. Your sample molecules travel at different speeds based on how much time they spend interacting with the column’s stationary phase versus being carried along by the gas.

This gas must remain completely inert throughout the analysis. Any chemical reaction between the carrier gas and your sample would compromise results and potentially damage equipment.

The flow of carrier gas also helps maintain consistent pressure inside the column. This stability is critical for reproducible retention times across multiple runs of the same sample.

Without a proper carrier gas for gas chromatography, compounds wouldn’t move through the system at all. Your sample would simply sit in the injection port or stick to the beginning of the column.

Most facilities run their carrier gas continuously during operation hours to maintain system stability. This prevents moisture and air from entering the column when the instrument sits idle between analyses.

GC Carrier Gas Selection: How to Choose the Right Carrier Gas

Your GC carrier gas selection depends on three main factors: your detector type, required analysis speed, and operational budget. The right choice balances performance needs with practical constraints like safety requirements and gas availability.

Which Gases Are Most Commonly Used?

Helium, hydrogen, and nitrogen are by far the most commonly used carrier gases in professional laboratories. Each has distinct characteristics that make it suitable for different applications.

Helium remains the most popular choice despite rising costs and supply concerns. It’s inert, non-flammable, and works with every detector type.

Hydrogen delivers the fastest analysis times and best resolution of any carrier gas. Many facilities avoid it due to explosion risks, though modern safety systems have made hydrogen much more manageable.

Nitrogen costs significantly less than helium but runs slower analyses. It works best with FID detectors where its slower optimal velocity isn’t a major limitation.

Argon is occasionally used in specialized applications, particularly with thermal conductivity detectors.

What Makes a Good Carrier Gas?

The ideal carrier gas is completely inert, readily available, and matches your detector’s requirements. Purity levels of 99.995% or higher prevent contamination that could damage columns or create baseline noise.

Low molecular weight gases like hydrogen and helium provide better diffusion rates. This means sharper peaks and better separation between compounds.

Your gas must remain stable across your operating temperature range. This is particularly important for high-temperature applications above 400°C (752°F).

Cost and availability drive many decisions in commercial operations. A pharmaceutical facility running 20 GCs continuously has different budget considerations than a small testing lab with two instruments.

How Do You Match the Carrier Gas to Your Application?

Consider these key factors to match the carrier gas to your application:

• Detector requirements: mass spectrometers need helium or hydrogen, while TCDs require a carrier gas with different thermal conductivity than your sample.
• Analysis time needs: hydrogen cuts run times by 30-50% compared to helium, critical when processing hundreds of samples daily.
• Column dimensions: narrow bore columns work best with hydrogen or helium, while wider columns can use nitrogen effectively.
• Safety infrastructure: hydrogen requires leak detectors, ventilation systems, and trained personnel that smaller operations might lack.
• Supply chain reliability: the ongoing helium shortage means many facilities now qualify methods on multiple carrier gases for operational flexibility.

The weight of each factor depends on your operation. A clinical lab running emergency toxicology screens prioritizes speed, while a food testing facility might prioritize cost.

How Does Carrier Gas Flow Rate Affect Your Results?

Flow rate directly impacts both your separation quality and analysis time, with each carrier gas having its own optimal velocity for best performance. The Van Deemter equation defines this sweet spot: hydrogen performs best around 40 cm/sec, helium at 25 cm/sec, and nitrogen at 12 cm/sec.

Higher flow rates push samples through faster but reduce the time molecules have to separate. Your 10-minute method might drop to 7 minutes, but those barely-separated peaks could merge completely.

Lower flow rates improve separation between similar compounds. This matters when analyzing complex samples like essential oils or petroleum products where dozens of compounds elute close together.

Temperature changes affect your actual flow rate since gases expand when heated. A flow that’s perfect at 50°C might be too fast at 300°C (572°F), which is why many modern GCs use electronic pressure control to maintain consistent linear velocity.

Most facilities find their optimal flow through trial and error during method development. Production labs often run slightly fast to maximize throughput (200 samples per shift), while research facilities run slower when identifying unknowns or quantifying trace contaminants.

What Purity Level Do You Need for Your Carrier Gas?

Most GC applications require carrier gas purity of 99.995% (4.5 grade) minimum, with sensitive detectors like ECDs and MSDs needing 99.999% (5.0 grade) or higher. The right purity level depends on your detector sensitivity and what contaminants would interfere with your specific analysis.

Common impurities include moisture, oxygen, and hydrocarbons. Even 10 ppm of water can damage polar GC columns over time, while oxygen causes stationary phase degradation at high temperatures.

Standard purity grades for carrier gases include:

• 99.995% (4.5 grade): suitable for FID and TCD detectors in routine analyses
• 99.999% (5.0 grade): required for mass spectrometers and electron capture detectors
• 99.9999% (6.0 grade): used for trace analysis below ppb levels or research applications

Many commercial labs just use 5.0 grade for everything to avoid switching cylinders between methods.

Can You Switch Between Different Carrier Gases?

Yes, you can switch carrier gases, but you’ll need to adjust method parameters and potentially modify equipment to maintain the same separation quality. Consider these factors when switching:

• Flow rate adjustments: hydrogen typically requires higher flow rates than helium, while nitrogen needs lower flow rates for equivalent separation.
• Temperature settings: hydrogen’s better heat transfer allows lower temperatures or faster ramp rates.
• Detector compatibility: mass spectrometers struggle with nitrogen, while FIDs work with any carrier gas.
• Safety requirements: switching to hydrogen requires leak detectors, proper ventilation, and safety training.
• Validation requirements: regulated industries need full revalidation including linearity, precision, and accuracy studies.
• Hardware modifications: different detector jets, new supply lines, or pressure regulators rated for your new gas.

Method translation software helps calculate new parameters, though you’ll still need to validate results before running actual samples. Budget adequate time for physical modifications and method optimization.

What Other Industries Rely on Carrier Gases?

While gas chromatography represents the largest use, carrier gases play essential roles in semiconductor manufacturing, metal fabrication, and other industries. The same inert properties that make these gases ideal for GC apply across multiple applications.

Semiconductor manufacturers use carrier gases in chemical vapor deposition (CVD) to transport reactive gases into process chambers. Nitrogen and argon carry silane and other precursors that form the thin films on computer chips.

The metal fabrication industry relies on carrier gases for laser cutting and welding applications. These gases blow molten metal away from the cut while protecting the heated area from oxidation.

Food packaging operations use nitrogen and CO₂ as carrier gases in modified atmosphere packaging. These gases flush out oxygen to extend the shelf life of everything from potato chips to pre-cut salads.

The pharmaceutical industry uses carrier gases in spray drying and tablet coating processes. Nitrogen carries the coating materials to create uniform drug release profiles.

Conclusion

Selecting the right carrier gas for gas chromatography means balancing performance needs with practical constraints like safety infrastructure and budget. Your detector type narrows the options, while analysis speed requirements and facility capabilities drive the final decision.
