What Is the Role of Helium Gas in Gas Chromatography?

Helium’s role in gas chromatography (GC) is to act as the carrier gas that pushes a vaporized sample through the column and into the detector. It moves samples quickly, doesn’t react with them, and poses no fire risk.

Helium’s speed, safety, and broad detector compatibility make it the most widely used carrier gas in labs running quality control, environmental monitoring, and forensic testing.

WestAir supplies gas for gas chromatography across California and Arizona.

Why Is Helium Used as a Carrier Gas in Gas Chromatography?

Helium is used as a carrier gas because sample compounds diffuse through it quickly, it doesn’t react with samples or columns, and it can’t burn.

Fast diffusion lets helium move samples through the column at a brisk pace without smearing the peaks. Sample compounds diffuse much faster through helium than through nitrogen, so helium can move them through the column at higher speeds while they still separate cleanly.

As a noble gas, helium won’t react with the compounds being analyzed. It also leaves the stationary phase alone, which is the thin coating inside the column that does the actual separating. The peaks a chemist sees come from the sample, not from a side reaction with the gas.

Helium’s non-flammability keeps a leak inside a hot oven or a cracked column from becoming a fire hazard. Hydrogen, the main alternative carrier gas, is flammable in air at concentrations from 4% to 75%.

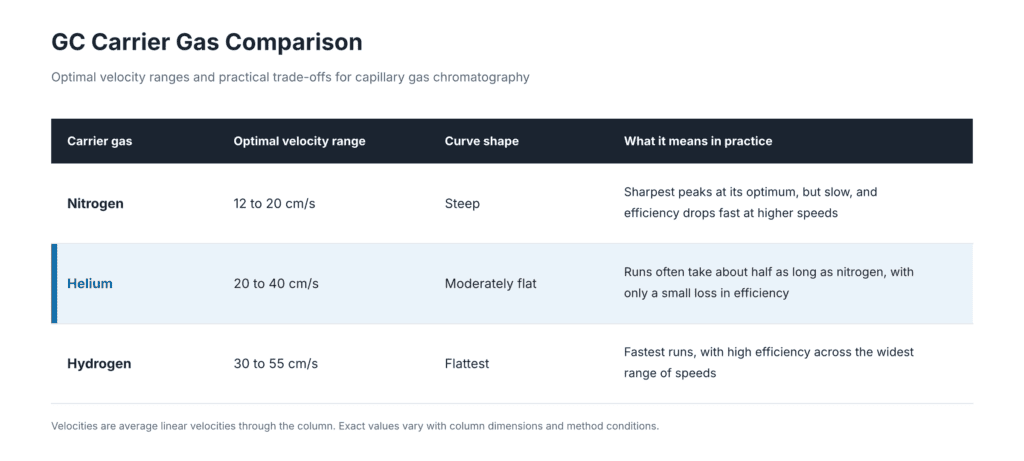

What Is the Optimal Linear Velocity for Helium in Gas Chromatography?

Helium performs best at roughly 20 to 40 centimeters per second (cm/s) in most capillary columns, and many methods settle at 30 to 35 cm/s.

Linear velocity is the average speed of the carrier gas through the column. Analysts measure it by timing how long a compound that doesn’t stick to the column takes to come out the other end.

The best speed for each gas comes from a Van Deemter curve, which plots how much peaks spread out against how fast the gas moves. Run the gas too slowly and sample bands drift apart lengthwise, like a drop of dye in still water. Run it too fast and molecules can’t move in and out of the column coating quickly enough, which also smears peaks. The low point of the curve marks the speed where peaks stay sharpest.

Carrier gas slows down during a temperature-programmed run when the instrument holds inlet pressure constant. Gases resist flow more as they heat up, the opposite of honey or motor oil, so the same pressure pushes less gas through a hotter column. GCs with electronic pressure control can run in constant-flow mode instead, raising inlet pressure as the oven heats so late-eluting compounds don’t crawl out of the column.

Set the target velocity at the oven’s starting temperature. That keeps the number comparable from one method to the next.

What Are Helium’s Detector-Specific Advantages and Limitations?

Helium suits mass spectrometers best, gives thermal conductivity detectors a strong signal for everything except hydrogen, passes cleanly through flame ionization detectors, and works with electron capture detectors once a makeup gas is added.

Mass Spectrometry (MS)

Helium stays inert inside the ion source of a gas chromatography-mass spectrometry (GC-MS) system, where compounds break into fragments for identification. The resulting fragment patterns line up with reference spectral libraries, most of which were built using helium.

Helium is also easy for the instrument’s vacuum pumps to remove. Its viscosity builds enough inlet pressure, even with the column outlet under vacuum, to keep the vaporized solvent contained during splitless injection, the technique that sends nearly the whole sample onto the column for trace analysis.

Swapping helium out is harder on GC-MS than on most detectors. Hydrogen can react in the ion source and distort fragment patterns for some compounds, and nitrogen sharply cuts sensitivity.

Thermal Conductivity Detectors (TCD)

A TCD measures how well the gas stream carries heat away from a hot filament. Helium conducts heat about six times better than nitrogen, and nearly every compound conducts far less than helium, so almost anything passing through produces a clear signal.

Hydrogen is helium’s blind spot on a TCD because it’s the only gas that conducts heat better, so it can show up as a weak, inverted, or split peak. Labs that need to measure hydrogen usually run the TCD on argon carrier gas instead. Helium itself can’t be measured on a TCD running helium carrier.

Flame Ionization Detectors (FID)

An FID burns compounds in a hydrogen-air flame and measures the ions they produce. Helium doesn’t burn or add background signal, so it passes through without affecting results.

Electron Capture Detectors (ECD)

An ECD picks up halogenated compounds, such as many pesticides, by tracking how much they reduce a steady electron current from a small radioactive source. That sensitivity makes it a common detector in environmental monitoring. Helium works as the carrier, but it can’t generate that electron current on its own, so the detector also needs a makeup gas such as nitrogen or argon-methane.

How Do Impurities in Helium Carrier Gas Show Up in GC Results?

Impurities in helium carrier gas show up as rising column bleed, noisy or drifting baselines, and ghost peaks, since the gas flows through the column and detector nonstop. Three contaminants cause most of the damage:

• Oxygen: attacks the stationary phase at high oven temperatures, breaking off fragments that raise the baseline and shorten column life.
• Moisture: degrades the stationary phase too and can shift retention times from run to run.
• Hydrocarbons: add background signal that appears as baseline noise and peaks that don’t belong to the sample.

Common guidance calls for carrier gas with less than 1 part per million (ppm) of oxygen and moisture, and helium of 99.999% purity or higher, depending on the instrument. Two cylinders sold at the same purity grade can still carry different levels of oxygen, moisture, and hydrocarbons. Ask your supplier for the impurity specs, which show the contaminants that actually wear out columns.

In-line purifiers strip oxygen, moisture, and hydrocarbons just before the gas enters the instrument. They also catch air that sneaks in during cylinder changes or through a loose fitting.

When bleed or noise climbs suddenly, check the gas supply, purifiers, and fittings before replacing the column. Indicating purifiers change color as they saturate, which makes a spent trap easy to spot.

Should Labs Use Less Helium Carrier Gas?

Labs should reduce their helium use due to recurring shortages by conserving gas on every instrument, shifting routine work to hydrogen or nitrogen, and keeping helium for the methods that depend on it most, especially GC-MS.

Helium is recovered as a byproduct at a small number of natural gas plants, so producers can’t simply ramp up output when demand rises. Global supply has tightened repeatedly since the mid-2000s, and a single plant outage or shipping disruption can leave labs facing price spikes or allocation limits.

The easiest place to start requires no method changes. Gas-saver modes cut the split flow after injection, and some GCs offer conservation modules that reduce helium use while the instrument sits idle.

Hydrogen is the closest replacement and can shorten runs. Its flammability calls for safeguards such as leak sensors, automatic shutoffs, or a generator that stores only a small amount of gas at a time. The gas can also react with some compounds during analysis, and every method moved over has to be translated—often onto a shorter, narrower column—and revalidated before its results count.

Nitrogen suits simpler separations on an FID, where a longer run is acceptable and cost matters more than speed.

Helium remains the safer bet for GC-MS library work, TCD methods that don’t need to measure hydrogen, and validated methods where revalidation costs more than the helium saved.

Matching Helium to the Methods That Need It

Helium’s inertness and detector compatibility matter most where results hinge on compound identification or trace detection, and routine separations can often run on hydrogen or nitrogen without giving up what the method needs.

Reach out to us at WestAir if you need help deciding which methods stay on helium or keeping your carrier gas supply steady.
