Why Do Rockets Use Hydrogen Fuel?

Rockets use hydrogen fuel because it delivers the highest specific impulse (efficiency) of any chemical propellant, producing more thrust per pound than any other fuel.

In this guide, we’ll explore why hydrogen has become the preferred fuel for many space missions. You’ll learn why its unique properties make it indispensable for modern rocketry.

Unmatched Energy Efficiency

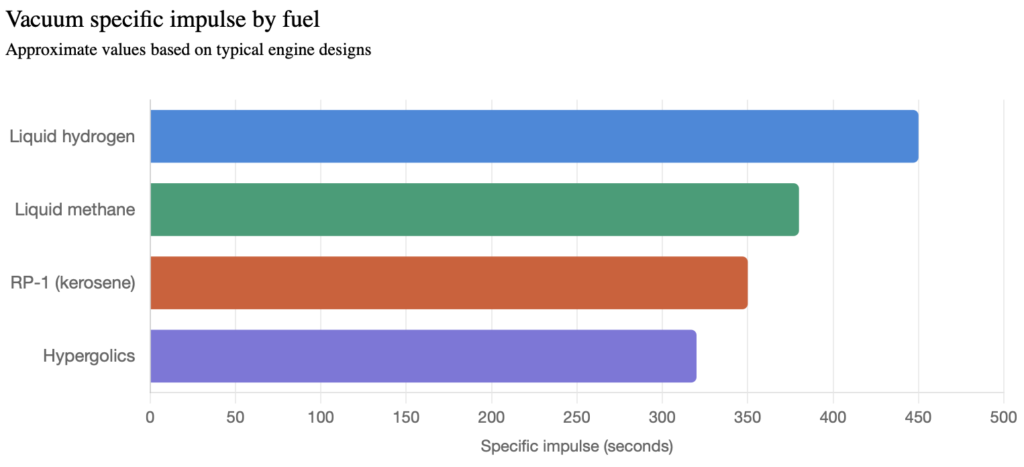

Hydrogen fuel offers exceptional energy-to-weight efficiency that other propellants cannot match. When combined with liquid oxygen, liquid hydrogen delivers a specific impulse of up to 450 seconds – significantly higher than alternatives like kerosene (RP-1) or methane.

This efficiency comes from hydrogen’s molecular structure. As the lightest element, hydrogen atoms accelerate to extremely high velocities during combustion, creating more powerful exhaust velocity.

The result is that rockets can carry more payload with less fuel mass – a critical advantage for missions requiring escape velocity to reach orbit or beyond.

For reference, a hydrogen-oxygen engine is about 40% more efficient than a comparable kerosene-oxygen engine – similar to comparing a hybrid car to a gas-guzzling SUV in terms of relative efficiency.

Aerospace engineers measure this advantage in delta-v – the total change in velocity a rocket can achieve. Higher specific impulse means more delta-v, which translates directly to greater mission capabilities.

Clean Combustion Products

Hydrogen fuel produces only water vapor (H₂O) as its combustion product, which makes it environmentally cleaner than hydrocarbon alternatives. This clean-burning characteristic offers two notable advantages for rocket engines:

1. When burned with oxygen, hydrogen creates no carbon dioxide, carbon monoxide, or particulate matter that could contaminate sensitive equipment or payloads.
2. The absence of carbon prevents coking—a process where carbon deposits accumulate inside engine components, degrading performance over time.

For spacecraft that may need to restart engines multiple times during a mission, this cleanliness factor becomes particularly important.

NASA’s Space Shuttle main engines, which ran on hydrogen and oxygen, could be reused for multiple missions partly because of this clean-burning advantage.

Superior Performance for Upper Stages

Hydrogen fuel particularly shines in upper stage rockets, where weight efficiency matters most. Once a rocket has escaped Earth’s lower atmosphere, thrust-to-weight ratio becomes less important than fuel efficiency.

Upper stages operate primarily in the vacuum of space, where hydrogen’s high specific impulse provides maximum benefit for:

• Orbital insertions
• Trajectory changes
• Interplanetary missions

The iconic Saturn V rocket that carried astronauts to the Moon used kerosene in its first stage but switched to hydrogen for its second and third stages to maximize efficiency where it mattered most.

This strategic fuel allocation has become standard practice in modern heavy-lift rockets. Initial stages focus on raw power to overcome gravity, while upper stages prioritize efficiency to achieve final orbit.

Aerospace companies continue to test and develop hydrogen propulsion systems at various facilities, taking advantage of isolated locations for these specialized tests.

Challenges of Hydrogen as Rocket Fuel

Despite its advantages, hydrogen fuel comes with significant practical challenges that impact rocket design and operation. The most notable difficulty is hydrogen’s extremely low density and temperature requirements.

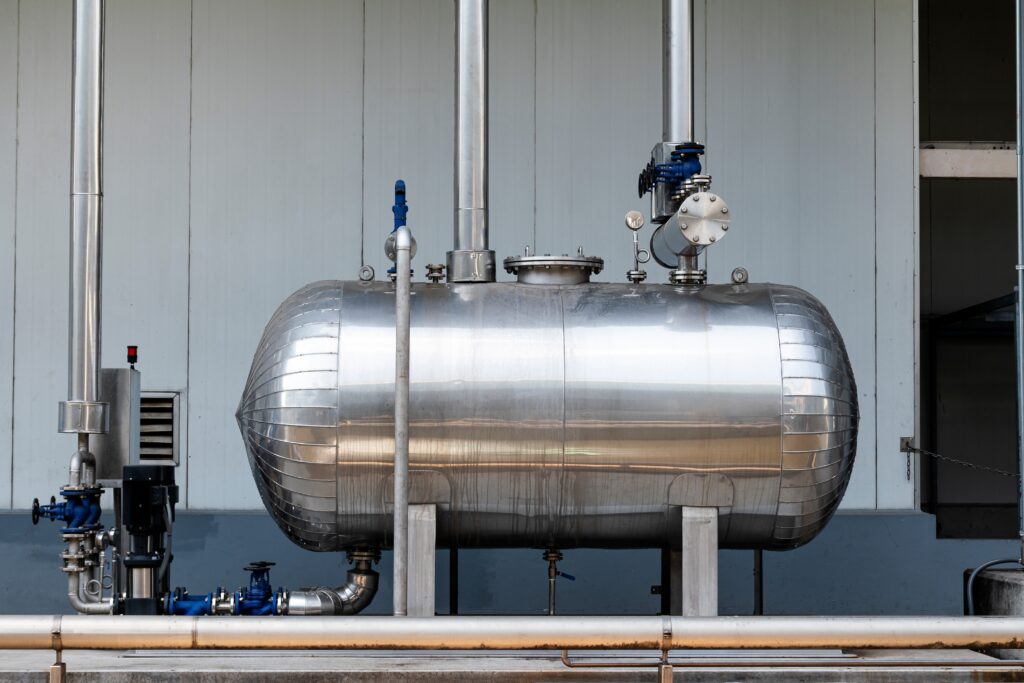

Hydrogen must be stored at -423°F (-253°C) in its liquid form, which calls for sophisticated cryogenic tanks with advanced insulation. Even then, some hydrogen inevitably boils off during storage.

To put this extreme cold in perspective, liquid hydrogen is just 20 degrees above absolute zero – colder than the surface of Pluto!

These storage requirements make hydrogen tanks significantly larger than those for denser fuels like kerosene. The Space Shuttle’s external tank was primarily so large because of the volume needed for hydrogen, not oxygen.

Hydrogen’s low density also means it delivers less thrust per volume than alternatives, which impacts first-stage performance where maximum thrust is needed to overcome Earth’s gravity.

Finally, hydrogen molecules are extremely small and can permeate through metals in a process called hydrogen embrittlement. This requires specialized materials for engine components and storage systems.

Examples of Hydrogen in Modern Rocket Programs

Today’s major space programs continue to rely on hydrogen fuel for their most ambitious missions. NASA’s Space Launch System (SLS), designed for deep space exploration, uses liquid hydrogen for its core stage and upper stage.

The European Space Agency’s Ariane rockets have also consistently used hydrogen-oxygen engines for their upper stages, enabling reliable satellite deployment to geostationary orbits.

While some newer commercial rockets have shifted toward methane fuel for reusability advantages, hydrogen remains unmatched for pure performance, especially for heavy payloads and deep space missions.

Research into improved storage technologies and more efficient engines continues to expand hydrogen’s potential applications in space exploration. Advanced insulation techniques and regenerative cooling systems also help mitigate some of the traditional challenges associated with hydrogen fuel.

Ongoing developments in materials science may eventually reduce hydrogen’s storage and handling difficulties, potentially expanding its use in future propulsion systems.

Hydrogen: A Mission-Critical Fuel

Hydrogen fuel powers rockets mainly because of its unmatched efficiency, clean combustion, and superior performance characteristics in the vacuum of space. Despite significant handling challenges, no other chemical propellant can match hydrogen’s specific impulse – which makes it indispensable for missions requiring maximum performance from every pound of fuel.

As space exploration advances toward more ambitious goals, hydrogen will likely remain a cornerstone of rocket propulsion technology, especially for deep space missions where efficiency ultimately determines what’s possible.
