532 Series Flashback arrestors

532 Series Flashback Arrestors

ACCESSORIES & SAFETY

The 532 Series of stainless steel and brass flashback arrestors prevent the transmission of flame in the supply line and equipment of high purity gas systems. An automatic valve in the 532 Series flashback arrestor cuts off gas supply in the event of flame stabilization inside the body of the arrestor.

The arrestors incorporate a non-return valve to prevent reverse flow of gases. With the brass arrestors, a positive shut off of reverse flow permits resetting and reuse after flashback has occurred. 532 Series Flashback Arrestors meet the safety requirements of BS6158, EN 730 (BAM/DIN), ISO 5175, AS 4603 and are UL Listed 23Y5.

Materials

Body and Internals 316L stainless steel
Elastomers Viton®
Temperature Sensor Polyethylene
Valve Spring 316 stainless steel
Weight 1.4 lbs. (0.64 kg)
Connections 1/4" FPT
UL Approved Maximum Pressure (UL 23Y5) Acetylene 15 PSIG (1 BAR) Hydrogen 50 PSIG (3.5 BAR) Natural Gas 50 PSIG (3.5 BAR) Propane 50 PSIG (3.5 BAR) Air/Oxygen 143 PSIG (10 BAR)

532 Series Flashback Arrestors Ordering Information

Part Number
  • 532 7000
  • 532 7001
  • 532 70012
  • 532 7003
  • 532 7004
  • 532 7005
  • 532 7006
  • 532 7007
Body
  • 316L stainless steel
  • 316L stainless steel
  • 316L stainless steel
  • Brass
  • Brass
  • Brass
  • Brass
  • Brass
Description
  • Fuel gas flash arrestor (with check valve)
  • Oxygen flash arrestor (with check valve)
  • Hydrogen flash arrestor (with high flow check valve)
  • Fuel gas flash arrestor (with check valve)
  • Oxygen flash arrestor (with check valve)
  • Fuel gas flash arrestor (with high flow check valve)
  • Oxygen flash arrestor (with high flow check valve)
  • Hydrogen flash arrestor (with high flow check valve)
Size / Dimensions
  • 1 1/4" x 4 3/4" (0.57mm x 2.15mm)
  • 1 1/4" x 4 3/4" (0.57mm x 2.15mm)
  • 1 1/4" x 4 3/4" (0.57mm x 2.15mm)
  • 1 1/4" x 4 3/4" (0.57mm x 2.15mm)
  • 1 1/4" x 4 3/4" (0.57mm x 2.15mm)
  • 1 1/4" x 4 3/4" (0.57mm x 2.15mm)
  • 1 1/4" x 4 3/4" (0.57mm x 2.15mm)
  • 1 1/4" x 4 3/4" (0.57mm x 2.15mm)

Specifications

BRASS MODEL
Materials and Specifications

  • Body and Internals: Brass with brass internals
  • Elastomers: Neoprene
  • Temperature Sensor: Polyethylene
  • Valve Spring: 316 stainless steel
  • Weight: 1.5 lbs. (0.68 kg)
  • Connections: 1/4″ FPT
  • UL Approved Maximum Pressure (UL 23Y5): Acetylene 15 PSIG (1 BAR) Hydrogen 50 PSIG (3.5 BAR) Natural Gas 50 PSIG (3.5 BAR) Propane 50 PSIG (3.5 BAR) Air/Oxygen 143 PSIG (10 BAR)

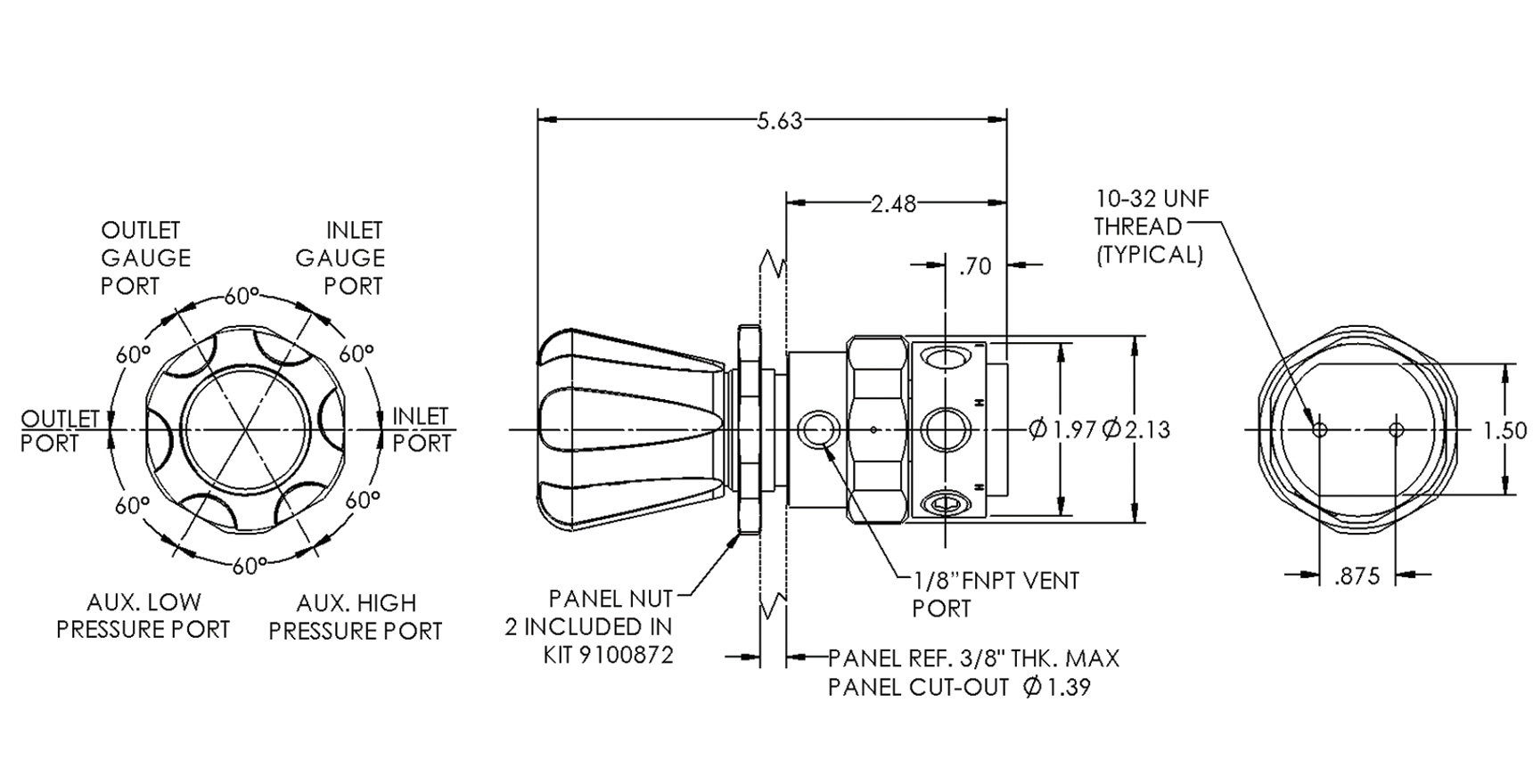

Dimensions
