WA 560 SERIES

560 Flow Meter

560 SERIES 150MM

The 560 Series (6″) 150mm variable area flowmeters offer inherent simplicity, versatility, and economy in a precision flow instrument. The 150mm scale (6″) is particularly suited for metering critical flows in laboratories, pilot plants or process applications as well as controlling carrier gases used in chromatography.

Flow readings from the millimeter scale are converted to actual flow using the calibration chart provided with the flowtube. WestAir offers a wide variety of flowtube and float combinations to provide the optimum flow range for each application.

Materials

Flowtube Heavy-walled borosilicate glass
Front Shield Lexan polycarbonate
End Fitting Brass or 316L stainless steel
Seals Buna-N (aluminum)
Viton® (316L stainless steel)
EPDM (optional)
Kalrez® (optional)

Features

Rib-Guided Tube Internals
Precise stable flow readings

Rotating Magnifier Lens
Enhances reading resolution

Two Panel Mount Retaining Nuts
Easy industrial panel mounting

Flowtubes Easily Interchangeable
One flowmeter frame accommodates a wide range of flow requirements

560 Flow Meter Ordering Information

Model
Series
  • 560
Tube Size*
A
  • 1:1
  • 2:2
  • 3:3
  • 4:4
  • 5:5
Float Material*
B
  • 1: Glass
  • 2: Sapphire
  • 3: 316L stainless steel
  • 4: Carbolloy
  • *Please see selection chart below for air flow information
Material
C
  • 0: No frame* (fitting and float only)
  • 1: Black anodized aluminum†
  • 2: 316L stainless steel†
  • *Not available with a valve †not available without a valve
Valve
D
  • 0: Tube and float only
  • 1: Standard valve
  • 2: High-accuracy valve*
  • * Not available with tube size 8 or 9 (A=8 or 9)
End Connection*
-CON(X)
  • 000:1/8" FPT
  • TF2: 1/8" tube
  • TF4: 1/4" tube
  • HB4:1/4" hose barb
  • *For EPDM/EPR seals, add “E" after the end connection. For Kalrez® seals, add “K" after end connection.

Flow Data

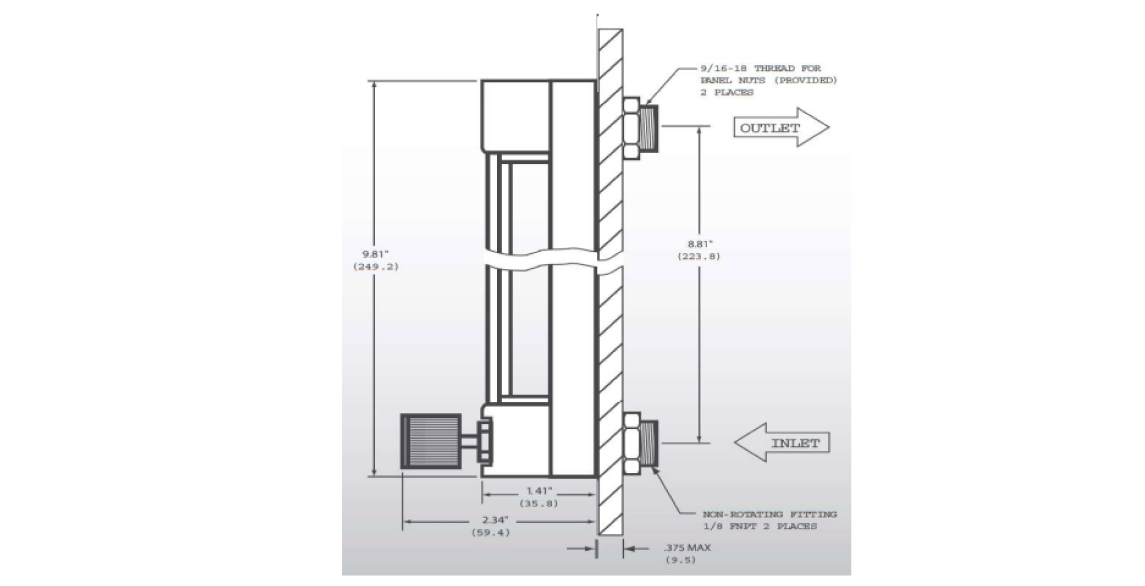

WA 560 dimensions

Specifications

  • Accuracy ±3% full scale
  • Repeatability ±.25% full scale
  • Maximum Pressure 200 PSIG (14 BAR)
  • Maximum Temperature 200°F (93°C)
  • Useful Flow Range 10:1
