565 Flow Meter

Compact, Precise Flow Measurement for Industrial and Regulator-Mounted Applications

The 565 Series 65mm (2.6″) variable area flowmeters offer inherent simplicity, versatility and economy in a precision flow instrument. The compact size of the 65mm (2.6″) scale is preferred in industrial panel-mounting applications and for direct mounting to a pressure regulator.

Flow readings from the millimeter scale are converted to actual flow using the calibration chart provided with the flowtube. WestAir offers a wide variety of flowtube and float combinations to provide the optimum flow range for your application.

Materials

Flowtube Heavy-walled borosilicate glass
Front Shield Lexan polycarbonate
End Fitting Brass or 316L stainless steel
Seals Buna-N (aluminum)
Viton® (316L stainless steel)
EPDM (optional)
Kalrez® (optional)

Features

Rib-Guided Tube Internals
Precise stable flow readings

Rotating Magnifier Lens
Enhances reading resolution

Two Panel Mount Retaining Nuts
Easy industrial panel mounting

Flowtubes Easily Interchangeable
One flowmeter frame accommodates a wide range of flow requirements

565 Flow Meter Ordering Information

Model
Series
  • 565
Tube Size*
A
  • 1:1
  • 2:2
  • 3:3
  • 4:4
  • 5:5
  • 6:6
  • 7:7
  • 8:8
  • 9:9
Float Material*
B
  • 1: Glass
  • 2: Sapphire
  • 3: 316L stainless steel
  • 4: Carbolloy
  • *Please see selection chart below for air flow information
Material
C
  • 0: No frame* (fitting and float only)
  • 1: Black anodized aluminum†
  • 2: 316L stainless steel†
  • *Not available with a valve †not available without a valve
Valve
D
  • 0: Tube and float only
  • 1: Standard valve
  • 2: High-accuracy valve*
  • * Not available with tube size 8 or 9 (A=8 or 9)
End Connection*
-CON(X)
  • 000:1/8" FPT
  • TF2: 1/8" tube
  • TF4: 1/4" tube
  • HB4:1/4" hose barb
  • *For EPDM/EPR seals, add “E" after the end connection. For Kalrez® seals, add “K" after end connection.

Specifications

  • Accuracy ±3% full scale
  • Repeatability ±.25% full scale
  • Maximum Pressure 200 PSIG (14 BAR)
  • Maximum Temperature 200°F (93°C)
  • Useful Flow Range 10:1

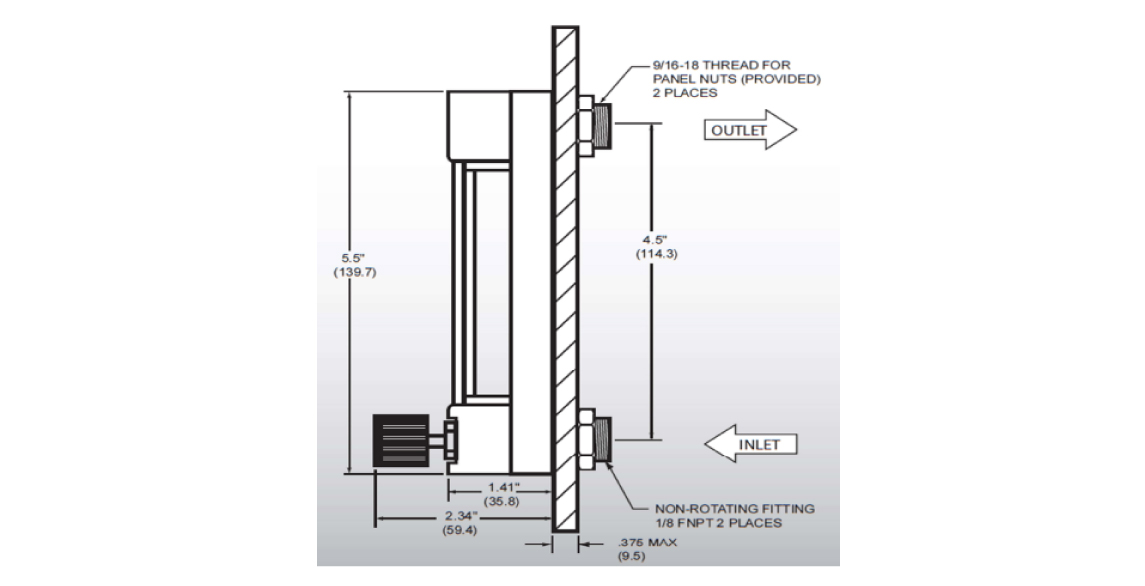

Dimensions
