Flowswitch 2000

Gas management simplified

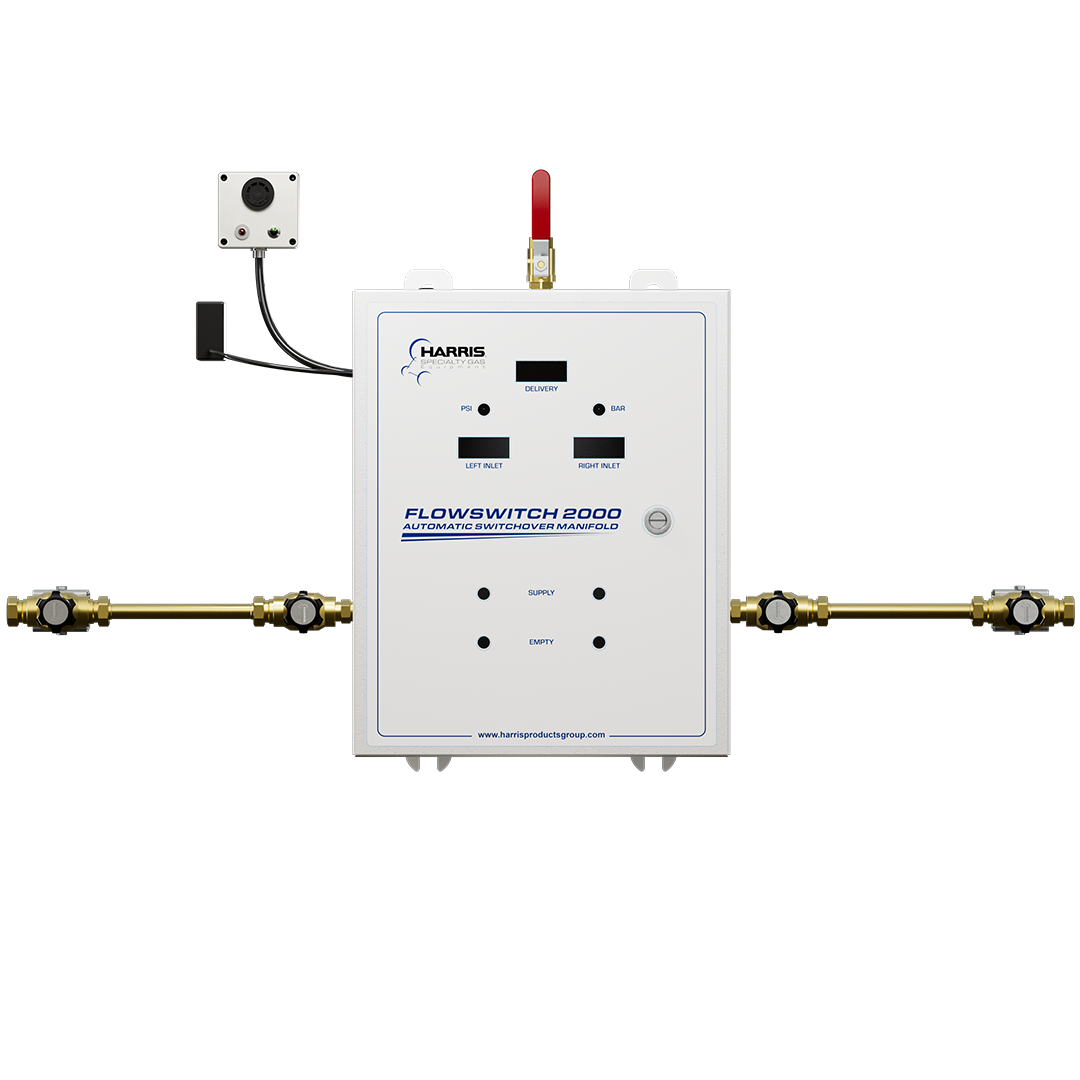

The FlowSwitch 2000 Gas Regulation Manifold is a versatile gas
manifold that can manage the flow of a variety of gases from both
cylinders and dewars into a facility. The simple operation allows you
to program your unit with no ongoing maintenance and keep the
enclosure locked to prevent unauthorized changes. As your facility
grows and changes, the FlowSwitch 2000 system can be upgraded
to meet the needs of your applications. An external heater can be
purchased for gases susceptible to freezing.

The FlowSwitch 2000 is ideally used for:

  • General Fabrication
  • Maintenance & Repair
  • Engineering Contractors
  • Education facilities
  • Life Sciences
  • Pipeline

Materials

Regulator Body Brass or 316L SS
Diaphragm 300 Series SS
Regulator Seat PCTFE
Seals PTFE
Valve Seat PTFE
Valve Stem SS
Enclosure NEMA 12 Powder Coated Steel

Features

  • Can be set for FIFO or dedicated primary gas withdraw

  • Modular, expandable header system for multiple cylinders
  • Designed for high purity or industrial grade gases
  • Brass and SS models available
  • Adjustability located inside enclosure to prevent undesired changes
  • Separately sold heater
  • Check Back Feature for liquid dewars
  • Economizer for reserve side liquid dewars
  • Ability to connect BMS systems (Dry Contacts)

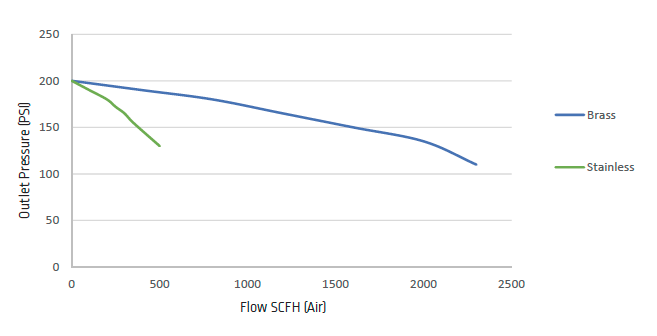

Flow Data

Specifications

  • Max Inlet Pressure: 3000psi
  • Outlet Flows: Up to 2000 SCFH (brass, air); up to 400 SCFH (stainless steel, air)
  • Filter: 10 microns
  • Electrical requirements 120V AC, 60Hz
  • Inlet/Outlet Ports: Brass 1/2″ NPT; Stainless 1/4 NPT
  • Temperature Range: oF (-17C) – 140F (60C)
  • Weight: 35lbs / 15.8kg

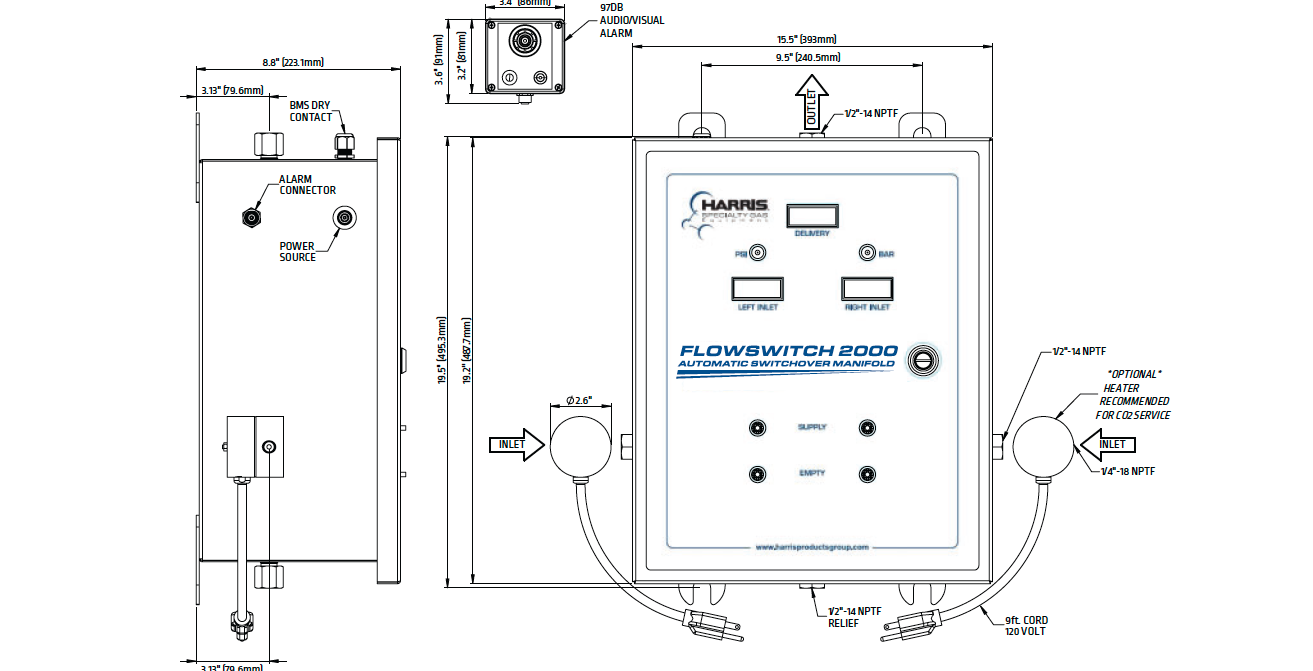

Dimensions
