Model 763 DataSMART

Take full control of your gas usage

The HARRIS Model 763 DataSMART™ is a fully-automatic, electronically controlled
gas switchover system that can provide continuous supply of gas from a variety of
sources including high pressure cylinders, liquid cylinders or bulk gas containers.
DataSMART™ includes a built-in WiFi-based telemetry system that allows the user
to view and manage all aspects of the gas system. It is ideal for both industrial and
high purity gases used in a variety of applications. The on-board software ensures
optimal gas use and savings especially from liquid cylinders and can greatly reduce or
eliminate venting and residual gas return.

Materials

Regulator Body brass or 316L SS
Diaphragms 300 series SS
Regulator Seats PCTFE
Seals PTFE
Valve Seat PTFE
Valve stem SS
Enclosures NEMA 4x powder coated steel

Features

  • LCD touchscreen control

  • Built-in, Wifi-based telemetry system and data acquisition via a remote server (WiFi connection required)
  • Customized alerts and notifications via email and SMS
  • Check Back Feature for liquid dewars
  • Economizer for reserve side liquid dewars
  • Secure login to protect settings
  • Optional mass flow meter to measure current gas usage or usage over time
  • 500 scfh heater for CO2 and N2O or mixtures
  • Optional remote A/V alarm
  • Modular, expandable header system for multiple cylinders
  • Designed for high purity or industrial grade hases
  • Brass and SS models available

Model 763 DataSMART Ordering Information

Series
  • 763B (Brass, 125 psi outlet)
  • 763BEX (Brass, 500 psi outlet)
  • 763S (SS, 125 psi outlet)
  • 763SEX (SS, 500 psi outlet)
  • 763BHL (Brass, heated)
  • 763SHL (SS, heated)
Cylinder Spacing
  • Leave blank for STD (10”)
  • Add “S” for opt 5” spacing
Pigtail Type
  • D - PTFE Lined Double Braid SS
  • A - SS Armor Cased
#R
Right # Cylinders
  • up to 25
Right Pigtail Length
  • 24"
  • 36"
  • 48"
  • 72"
  • 120"
#L
Left # Cylinders
  • up to 25
Gas Service (CGA)
  • 000 (No CGA)
  • 240 (SS Only)
  • 280
  • 296
  • 320
  • 320HT (Hand Tight)
  • 350
  • 500
  • 510P
  • 540
  • 540HT
  • 555
  • 580
  • 580HT (Hand Tight)
  • 590
  • 347
  • 660 (SS Only)
  • 680
  • 705 (SS Only)
Accessories
  • A - 1/8” Inlet Compression Fitting
  • B - 1/4” Inlet Compression Fitting
  • C - 3/8” Inlet Compression Fitting
  • D - Inlet Isolation Valve
  • E - Inlet Purge Valves
  • F - Std Outlet Fitting (CGA 1340/1350)
  • G - 1/8” Outlet Compression Fitting
  • H - 1/4” Outlet Compression Fitting
  • J - 3/8” Outlet Compression Fitting
  • K - Outlet Isolation Valve
  • M - Outlet Purge Valve
  • N - Mass Flowmeter
  • P - Ethernet Router
Options
  • 1 - A/V Alarm w/10' Cable
  • 2 - A/V Alarm w/50’ Cable
  • 4 - A/V Alarm w/100’ Cable
  • 8 - Assemble Headers
Crossover Header
  • Y (Leave blank for No)

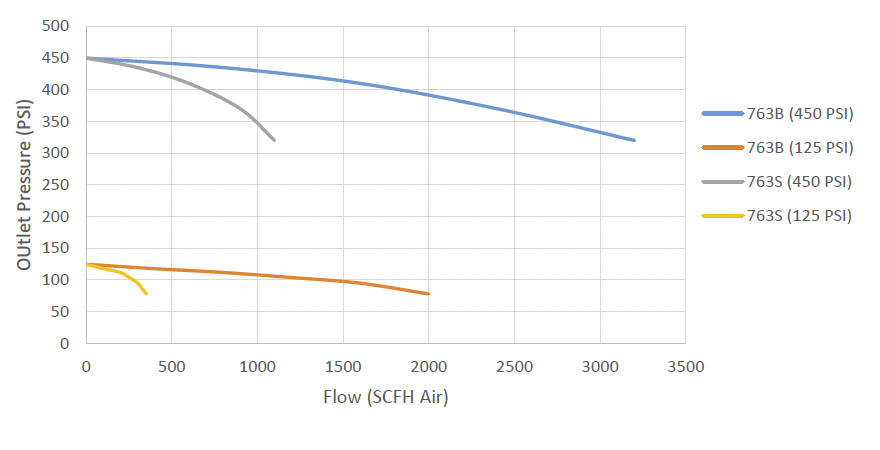

Flow Data

Specifications

  • Max inlet pressure up to 4500 psi
  • Min inlet pressure 100 psi required
  • Outlet pressures up to 450 psi
  • Output flows up to 3000 scfh (air)
  • Programmable switchover pressure for both right and left side from 70 to 1500 psig
  • Class 1, Division 2 NEMA enclosures
  • Filter – 10 micron
  • Electrical requirement 120VAC 50/60Hz
  • Inlet ports 1/2″ NPT
  • Outlet ports 1/2″ NPT
  • Temperatures range 0F to 140F

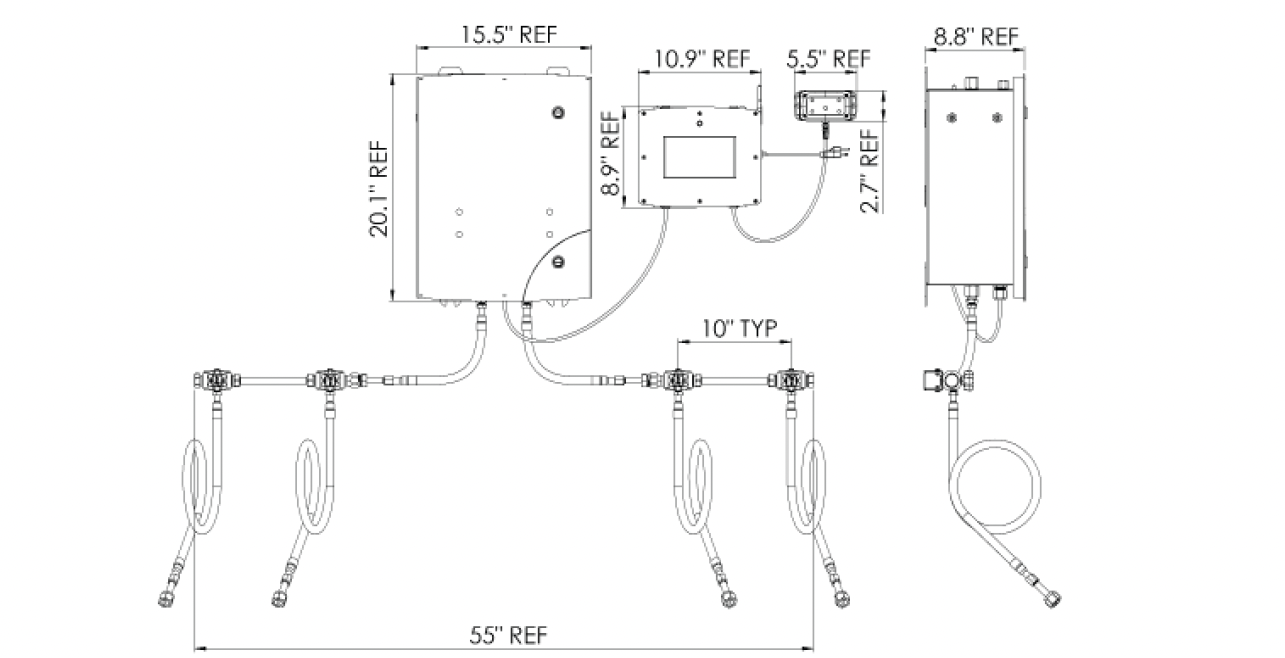

Dimensions
