WA 220

Pressure Differential Switchover

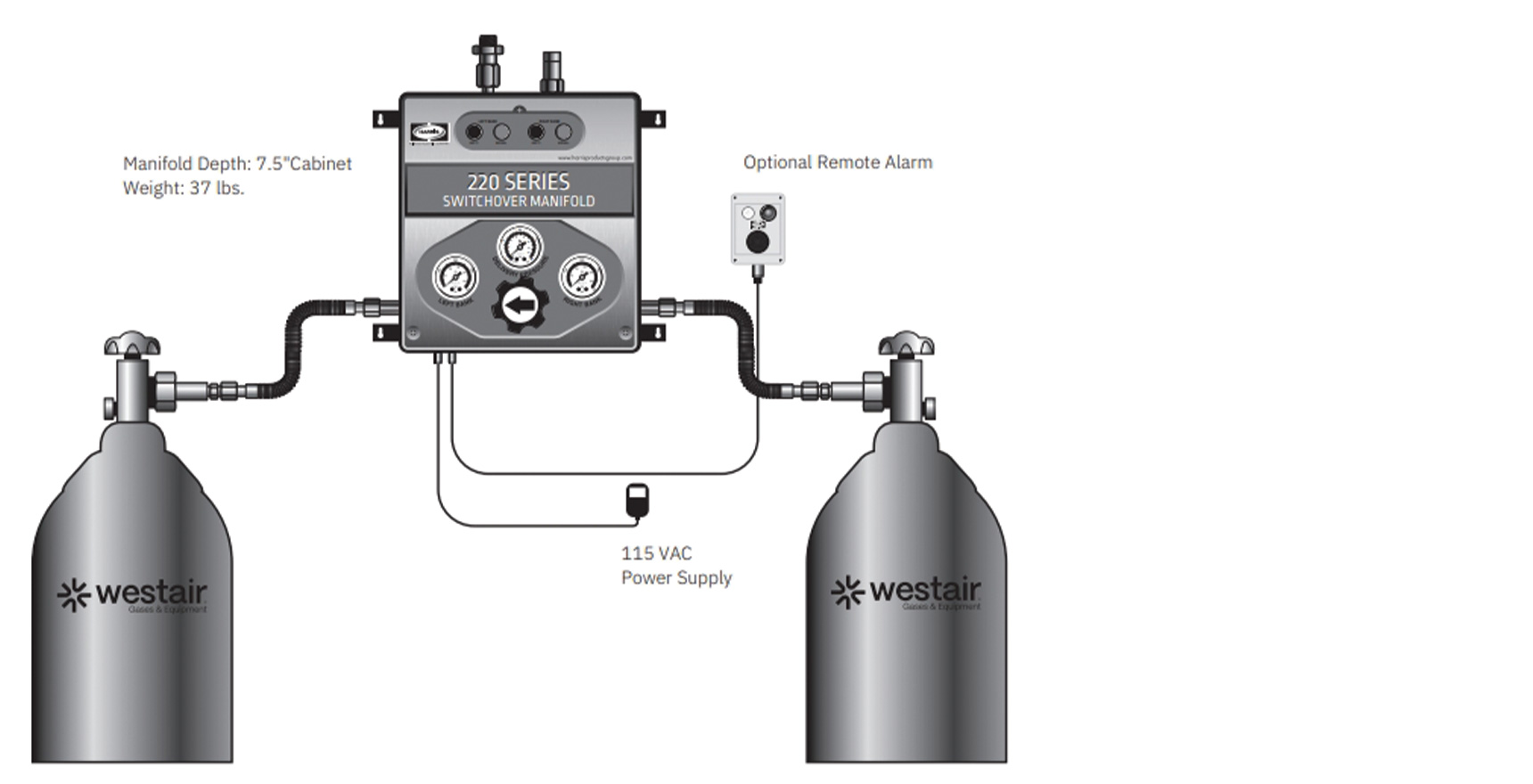

The WA220 Manifold prevents downtime by automatically switching gas supply from the primary cylinder bank to the reserve cylinder bank.

All components are enclosed and protected inside a tamper-resistant case. A green light indicates the primary cylinder bank is functioning and the reserve cylinder bank is ready for service. A red light alerts the user that the unit has changed over and one or both banks are depleted (except on fuel gas units). The user resets the primary bank by turning the knob.

Features

  • All systems include stainless steel braided pigtails with PTFE lined inner core except, helium and hydrogen systems that have a thermoplastic inner core
  • Acetylene systems include: 500 SCFH flashback arrestor and piping, stainless steel braided pigtails with individual flashback arrestors and check valves
  • Electrical – 115 volts (AC) except for fuel gas
  • Manifold outlet – 1/2″ NPT
  • Relief valve outlet – 1/4″ NPT
  • 1/2″ brass, silver brazed headers

Optional Accessories

  • 4302160 – Remote Alarm Box
  • 9010573 – 10ft. Alarm Cable
  • 9010574 – 50ft. Alarm Cable

WA 220 Ordering Information

SERIES
  • 220
  • Oxy/Inert (30-125 PSIG)
  • Acetylene (0-15 PSIG)
  • LPG (0-30 PSIG)
  • 220HL
  • (30-125 PSIG)
  • For CO2 , N2O and mixtures
  • 500 SCFH heater included
  • 220HP
  • (50-200 PSIG)
    Delivery Pressures up to 235 available upon request
RIGHT / (# CYLINDERS)
  • 24" Pigtails
  • 1R24
  • 2R24
  • 3R24
  • 36" Pigtails
  • 1R36
  • 2R36
  • 3R36
  • 4R36
LEFT / (# CYLINDERS)
  • 24" Pigtails
  • 1L24
  • 2L24
  • 3L24
  • 36" Pigtails
  • 1L36
  • 2L36
  • 3L36
  • 4L36
GAS SERVICE
  • 300 - Acetylene
  • 320 - Carbon Dioxide
  • 326 - Nitrous Oxide
  • 346 - Air (Breathing)
  • 350H - Hydrogen
  • 350 - Fuel Gas (Methane)
  • 510A - Acetylene
  • 510 - Propane, LPG, Fuel Gases
  • 540 - Oxygen
  • 580 - Argon / Nitrogen
  • 580H - Helium
  • 590 - Industrial Air

Flow Data

Specifications

SERIES MAX INLET PRESSURE MAX FLOW RATE ADJUSTABLE DELIVERY RANGE
220 3000 PSIG 1200 SCFH 30-125 PSIG
220 (CO2, N2O) 3000 PSIG 35 SCFH 30-125 PSIG
220 (Acetylene, LPG) 400 PSIG 500 SCFH 0-15, 0-30 PSIG
220 (CO2, N2O) 2000 PSIG 500 SCFH 30-125 PSIG
220HP 3000 PSIG 2000 SCFH 50-200 PSIG
220HPHL (CO2, N2O) 2000 PSIG 500 SCFH 50-200 PSIG
