WA 240

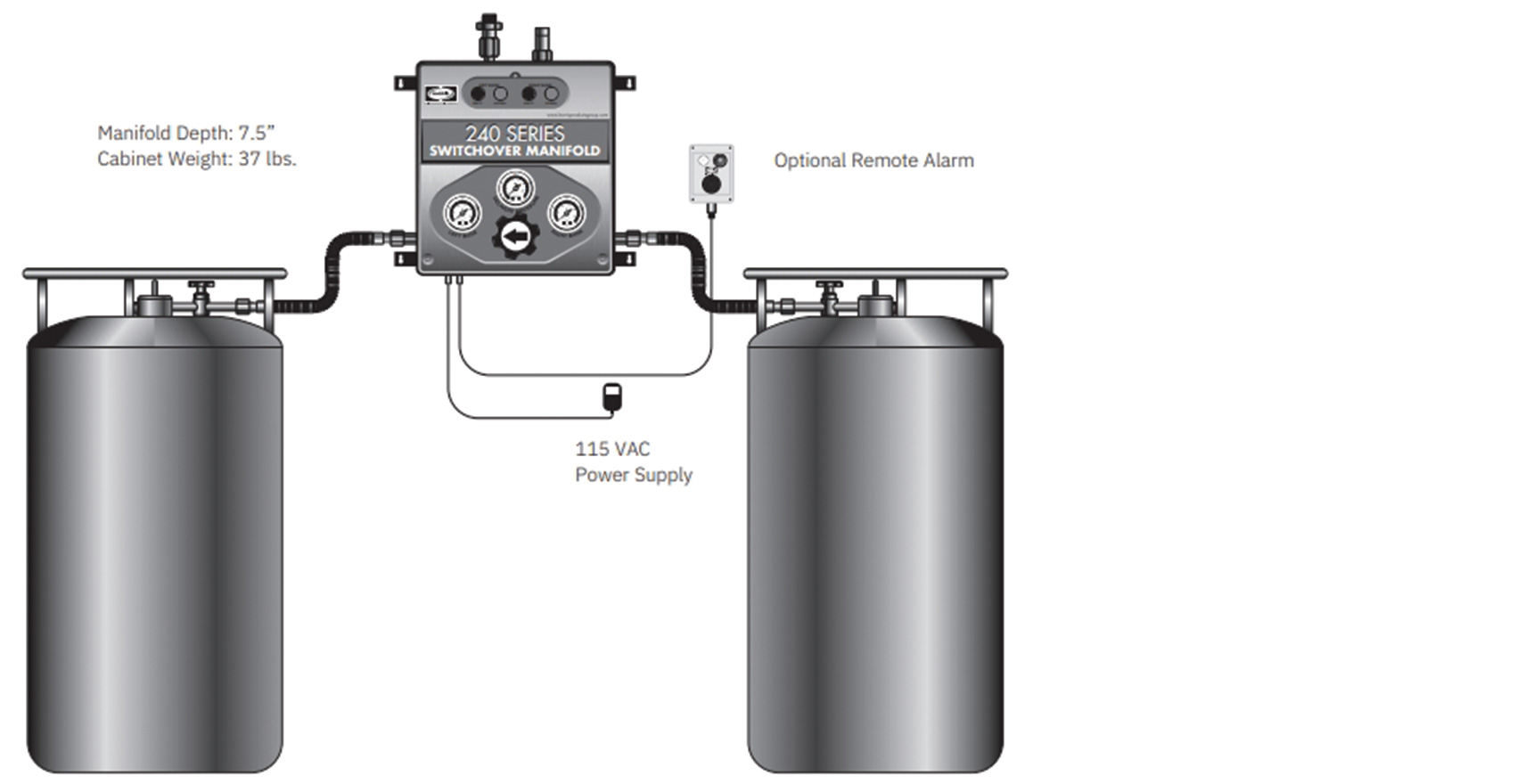

Liquid Cylinder Switchover

  • Adaptable up to 3 cylinders per side
  • Electrical – 115 volts (AC)
  • Maximum inlet pressure 230 or 350 PSIG
  • Manifold outlet – 1/2″ NPT
  • Relief valve outlet – 1/4″ NPT
  • 240 Series for use with 235 PSIG relief valve liquid cylinders
  • 240HP Series for use with 350 PSIG relief valve liquid cylinders
  • Remote alarm available
  • Economizer Circuit

Optional Accessories

  • 4300698 – Remote Alarm Box
  • 4300699 – 10ft. Alarm Cable
  • 4300709 – 50ft. Alarm Cable
  • 9101996 – CGA 320 Pigtail, 72″
  • 9101997 – CGA 540 Pigtail, 72″
  • 9101998 – CGA 580 Pigtail, 72″

Materials

Inlet / Outlet Fittings Brass

Features

  • Adaptable up to 3 cylinders per side
  • Electrical – 115 volts (AC)
  • Maximum inlet pressure 230 or 350 PSIG
  • Manifold outlet – 1/2″ NPT
  • Relief valve outlet – 1/4″ NPT
  • 240 Series for use with 235 PSIG relief valve liquid cylinders
  • 240HP Series for use with 350 PSIG relief valve liquid cylinders
  • Remote alarm available
  • Economizer Circuit

Optional Accessories

  • 4300698 – Remote Alarm Box
  • 4300699 – 10ft. Alarm Cable
  • 4300709 – 50ft. Alarm Cable
  • 9101996 – CGA 320 Pigtail, 72″
  • 9101997 – CGA 540 Pigtail, 72″
  • 9101998 – CGA 580 Pigtail, 72″

WA 240 Ordering Information

SERIES
  • 240
  • 240HP
RIGHT / (# CYLINDERS)
  • 72" Pigtails
  • 1R72
  • 2R72
  • 3R72
LEFT / (# CYLINDERS)
  • 72" Pigtails
  • 1L72
  • 2L72
  • 3L72
GAS SERVICE
  • 320 - Carbon Dioxide
  • 540 - Oxygen
  • 580 - Argon/Nitrogen
  • 326 - Nitrous Oxide

Flow Data

Specifications



SERIES MAX INLET PRESSURE MAX FLOW RATE ADJUSTABLE DELIVERY RANGE
240 235 PSIG 750 SCFH 40 – 85 PSIG
240HP 350 PSIG 800 SCFH 40 – 180 PSIG
