Why Is Liquid Hydrogen Used as Rocket Fuel?

Liquid hydrogen (LH₂) is used as rocket fuel because it delivers the highest specific impulse (Isp) of any practical chemical rocket fuel, producing more thrust per pound burned than any other option. Paired with liquid oxygen as the oxidizer, it powers upper stages and deep-space missions where every pound of fuel counts.

WestAir supplies liquid hydrogen for rockets across California and Arizona.

What Makes Liquid Hydrogen So Efficient as a Rocket Fuel?

Liquid hydrogen is efficient because its low molecular weight produces extremely high-velocity exhaust when combusted with liquid oxygen. Lighter exhaust molecules accelerate faster out of the nozzle, and exhaust velocity is what drives specific impulse.

Higher specific impulse means more payload capacity, greater range, or both for the same fuel mass loaded onto the rocket. For missions heading beyond low Earth orbit, that efficiency advantage compounds with every maneuver.

Why Do Rockets Use Liquid Hydrogen Instead of Hydrogen Gas?

Rockets use liquid hydrogen instead of hydrogen gas because gaseous hydrogen is far too low in density to store usable quantities onboard. At room temperature and atmospheric pressure, hydrogen gas takes up roughly 850 times the volume of its liquid form.

Cooling hydrogen to -253°C (-423°F) shrinks that volume dramatically and turns it into a storable liquid. Even then, liquid hydrogen is still only about 1/14th as dense as water, making it one of the least dense liquid fuels in use.

The alternative would be tanks so large they’d defeat the purpose. Oversized tanks add structural weight, increase aerodynamic drag, and eat into the payload budget the efficient fuel was supposed to protect.

What Are the Challenges of Using Liquid Hydrogen?

Liquid hydrogen is demanding to work with, requiring cryogenic infrastructure, specialized materials, and careful safety protocols that denser fuels don’t need. Every advantage comes with a trade-off, and liquid hydrogen has several worth noting:

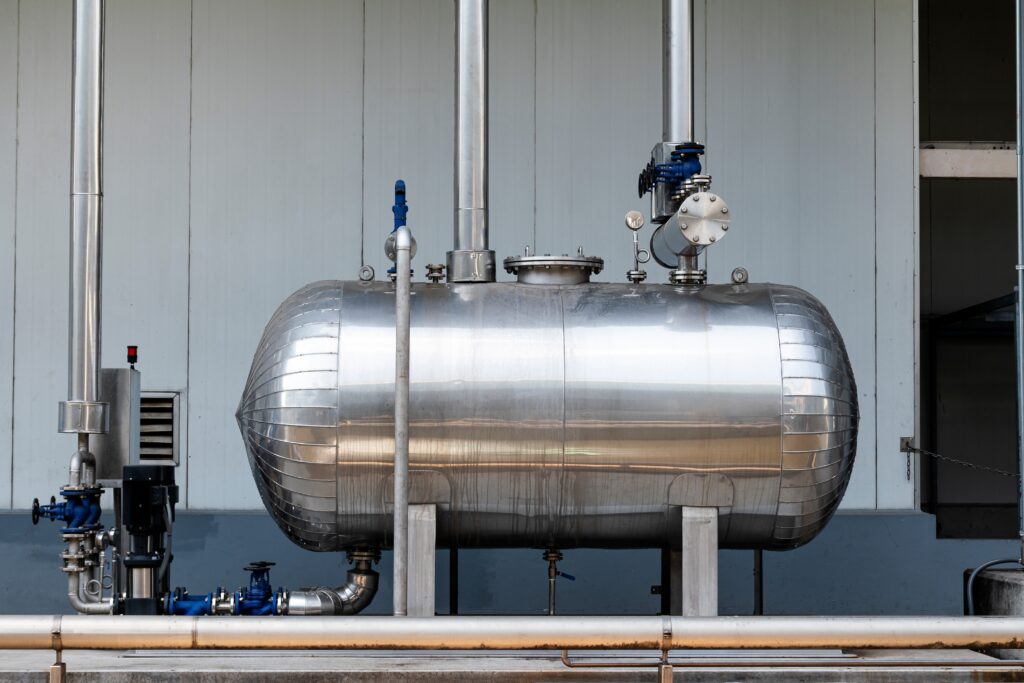

• Cryogenic storage: maintaining -253°C (-423°F) requires heavy insulation, and boil-off losses mean tanks must be continuously topped off until launch.
• Low density: even as a liquid, hydrogen still requires larger tanks than kerosene-based fuels like RP-1, adding vehicle size and dry mass.
• Hydrogen embrittlement: hydrogen atoms penetrate metal structures and weaken them over time, demanding specific alloys and inspection protocols.
• Wide flammability range: liquid hydrogen ignites across a broad mix ratio with air, and its flame is nearly invisible in daylight, complicating leak detection.
• Infrastructure requirements: production, liquefaction, transport, and storage all require purpose-built systems that aren’t interchangeable with other fuel logistics.

These challenges are why liquid hydrogen isn’t the default for every rocket. When efficiency justifies the cost and complexity, it wins. When it doesn’t, denser fuels take the job.

Which Rocket Stages Typically Use Liquid Hydrogen?

Liquid hydrogen shows up most often in upper stages, where specific impulse matters more than raw thrust. Upper stages operate in vacuum or near-vacuum conditions and need to squeeze maximum velocity out of every pound of fuel to reach orbit or push payloads deeper into space.

Notable examples include the Space Shuttle main engines, the Delta IV’s core and upper stages, NASA’s Space Launch System (SLS) core and upper stages, and the Centaur upper stage that has flown on multiple launch vehicles since the 1960s.

First stages are a different story. At liftoff, a rocket needs enough thrust to overcome its own weight quickly, and denser fuels like RP-1 kerosene or liquid methane deliver better thrust-to-weight ratios. The SLS core stage and the now-retired Delta IV are notable exceptions, using liquid hydrogen from the ground up.

How Does Liquid Hydrogen Compare to Other Rocket Fuels?

Liquid hydrogen leads in efficiency but trails in density and handling simplicity compared to the other fuels in regular use. Each fuel fills a different role in the mission profile:

• RP-1 (refined kerosene): room-temperature storable and relatively dense, with vacuum Isp around 350 seconds. Favored for first stages where thrust-to-weight matters more than efficiency. Flown on Falcon 9, the Atlas V first stage, and the Saturn V first stage.
• Liquid methane: a middle-ground option with vacuum Isp near 380 seconds. Denser than hydrogen, cleaner-burning than RP-1, and cryogenic but not nearly as cold. Used on Starship, Vulcan, and New Glenn.
• Hypergolics (such as hydrazine with nitrogen tetroxide): ignite on contact without an ignition system and stay liquid at room temperature. Vacuum Isp around 320 seconds, and the chemistry is highly toxic. Common on upper stages, spacecraft maneuvering systems, and legacy hardware like the Space Shuttle’s orbital maneuvering system.

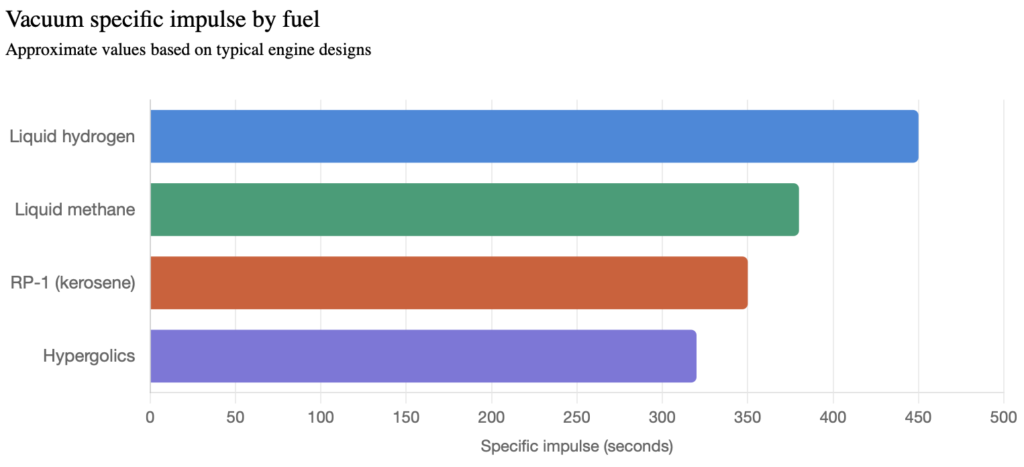

Liquid hydrogen’s roughly 450-second vacuum Isp beats all of them, but the gap narrows once density, storability, and handling costs enter the picture. That’s why modern launch vehicles often mix fuels across stages rather than commit to one throughout.

The Bottom Line

Liquid hydrogen earns its place in rocketry through efficiency, not convenience. Its specific impulse advantage translates directly into payload capacity and mission range, which is why it keeps showing up on vehicles pushing beyond low Earth orbit.

That said, cryogenic handling, low density, and material compatibility all add complexity that denser fuels sidestep. Program planners accept those trade-offs when the mission rewards efficiency more than simplicity, and for deep-space work, it usually does.
