What Is Sulfur Hexafluoride Used For?

Sulfur hexafluoride (SF₆) is used mostly as an electrical insulating gas, with smaller roles in eye surgery, ultrasound imaging, semiconductor etching, and leak tracing. Roughly 80% of all SF₆ produced goes to the electric power industry.

WestAir supplies sulfur hexafluoride across California and Arizona.

What Properties Make Sulfur Hexafluoride Useful?

Nearly every SF₆ application comes down to four properties: it resists electrical breakdown, extinguishes arcs, is unusually dense, and reacts with almost nothing.

SF₆ withstands roughly two and a half to three times as much voltage as air across the same gap at atmospheric pressure. The molecule is strongly electronegative, so it captures free electrons and converts them into heavy, slow-moving negative ions before they can cascade into a conductive path.

That same appetite for electrons makes it a fast arc quencher, at around 100 times more effective than air. Its decomposition products recombine back into SF₆ as the gas cools, so the insulating medium restores itself.

It is also heavy. At about 146 grams per mole, SF₆ is roughly five times denser than air, which matters anywhere the gas needs to stay put or absorb energy.

Chemically, it barely does anything. Pure SF₆ is non-flammable, odorless, and stable in contact with most materials up to around 204°C (400°F). It is non-toxic in its pure state, though arcing breaks it into corrosive byproducts, which is a reason why handling sulfur hexafluoride safely requires some effort.

Why Does the Electrical Industry Use SF₆ in Switchgear and Circuit Breakers?

Utilities use SF₆ because it both insulates the live parts and extinguishes the arc that forms when a circuit breaker opens under load. Nothing else does both jobs as well at transmission voltages.

When contacts separate in an energized breaker, an arc bridges the gap and current keeps flowing. SF₆ blown across that gap strips the conducting electrons out of the arc, and the gap recovers its insulating strength quickly enough to clear the fault at the next current zero.

Live conductors can sit inches apart in pressurized SF₆ instead of feet apart in open air, so a gas-insulated substation fits where an air-insulated one never would. Footprint reductions range from about 35% to 90% depending on voltage class and layout.

That compactness is why SF₆ equipment ended up in downtown substations, underground vaults, offshore wind platforms, and industrial plants with no land to spare. U.S. utilities have relied on it in circuit breakers and gas-insulated substations since the mid 20th century.

What Are the Medical Uses of Sulfur Hexafluoride?

SF₆ has two established medical uses in the United States: a gas bubble that holds a repaired retina in place after surgery, and a contrast agent for ultrasound imaging.

In vitreoretinal surgery, the surgeon replaces the vitreous gel with a gas bubble that presses the retina against the back wall of the eye while it heals. SF₆ is chosen for the job because it dissolves poorly in water, so the bubble lasts long enough to be useful. A 20% SF₆-in-air mixture is the common non-expansile fill, and it resorbs in roughly two weeks. Patients cannot fly until it is fully gone, because the trapped gas expands at cabin altitude and can spike eye pressure.

The second use is an ultrasound contrast agent made of SF₆ encapsulated in lipid microspheres, sold in the US as Lumason. Injected into the bloodstream, the microbubbles reflect sound waves strongly, sharpening images of the heart chambers, liver lesions, and the pediatric urinary tract.

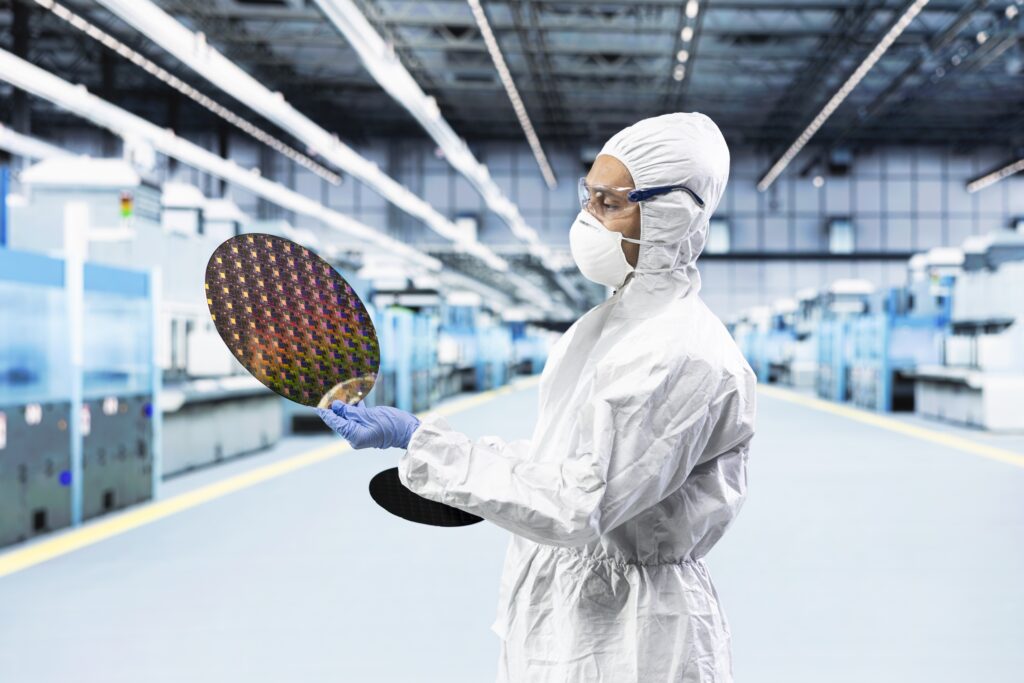

What Role Does SF₆ Play in Semiconductor Manufacturing?

Chip fabs use SF₆ as a fluorine source for plasma etching, where it cuts precise features into silicon without leaving carbon residue behind. In the plasma, SF₆ breaks apart and releases atomic fluorine, which reacts with silicon to form silicon tetrafluoride, a gas that pumps straight out of the chamber.

That reaction is the etch half of the Bosch process, the alternating etch-and-passivate cycle behind deep, near-vertical trenches in microelectromechanical systems (MEMS) and through-silicon vias. Aspect ratios of 50:1 and higher are achievable.

The same chemistry carries over to flat panel display fabrication and photovoltaic panel production, and to cleaning deposition chambers between production runs.

Where Is SF₆ Used as a Tracer Gas?

Industrial hygienists and building engineers release small amounts of SF₆ into an airstream and track where it ends up, which exposes air exchange rates, short-circuiting ventilation paths, and re-entrainment of exhaust back into fresh air intakes.

SF₆’s electronegativity makes it easy to pick up by electron capture, and instruments read it down into the parts-per-billion range, some into parts per trillion. Ambient background is negligible, so a very small release still produces a clean signal.

ASHRAE Standard 110, the industry test for laboratory fume hood containment, specifies SF₆ as the challenge gas. The same technique scales up to atmospheric dispersion studies and underground mine ventilation surveys.

What Other Equipment Relies on SF₆ Insulation?

Equipment that has to hold back very high voltage inside a small volume tends to run on SF₆.

Electrostatic particle accelerators are the clearest case. Tandem Van de Graaff machines house their high-voltage terminals in pressure vessels filled with SF₆ or SF₆ blends at roughly 10 atmospheres, which is what allows terminal voltages of 15 million volts and up without flashover.

High-voltage X-ray systems and cargo scanning equipment use it the same way, insulating terminals running well over 100 kilovolts. Linear accelerator waveguides get pressurized with SF₆ to raise the peak power they can carry before arcing.

High-voltage test laboratories run SF₆-insulated test transformers that flange directly onto the gas-insulated equipment under test. That removes the safety clearances an open-air rig would need between the test setup and the lab walls. Sealing the two together also drops the partial discharge background low enough for sensitive measurements.

Which SF₆ Uses Are Being Phased Out?

Most SF₆ applications outside electrical equipment are already gone or going, pushed out by the gas’s global warming potential.

Nike used SF₆ in its Air cushioning units because the large molecule diffused out through the bladder slowly enough to keep the unit inflated for the life of the sneaker. They swapped in nitrogen, which meant re-engineering the bladder itself, since it escapes plain urethane far faster. An ethylene vinyl alcohol barrier layer laminated between thermoplastic urethane walls got it to hold pressure, and Nike has been SF₆-free since 2006.

Acoustic glazing used SF₆ because a dense gas absorbs sound between window panes, something argon does nothing for. But the European Union banned fluorinated gases in domestic windows and footwear under its 2006 F-gas regulation, and the application has largely disappeared.

Magnesium die casters used dilute SF₆ as a cover gas, where it reacts at the melt surface to form a fluoride-bearing film that keeps molten magnesium from oxidizing or igniting. U.S. casters worked with the Environmental Protection Agency to convert to alternatives including sulfur dioxide, HFC-134a, and fluoroketone products.

Electrical equipment is the harder case, and it is moving too. California began restricting new SF₆ gas-insulated equipment in 2025, and New York’s phaseout starts in 2027. Vacuum interrupters paired with dry air now cover medium voltage, and fluoronitrile blends handle higher voltages where compact layouts still matter, while alternatives at the very top of the transmission range are still being piloted.

Where SF₆ Still Earns Its Place

SF₆ holds on wherever its dielectric strength and arc quenching have no substitute, and it disappears wherever engineering effort can get a far less potent greenhouse gas to do the same job. Which side a given application sits on is worth checking before specifying SF₆ for anything new, since the rules around it keep changing. If you are working out what a specialty gas application actually requires, our team can talk it through with you.
